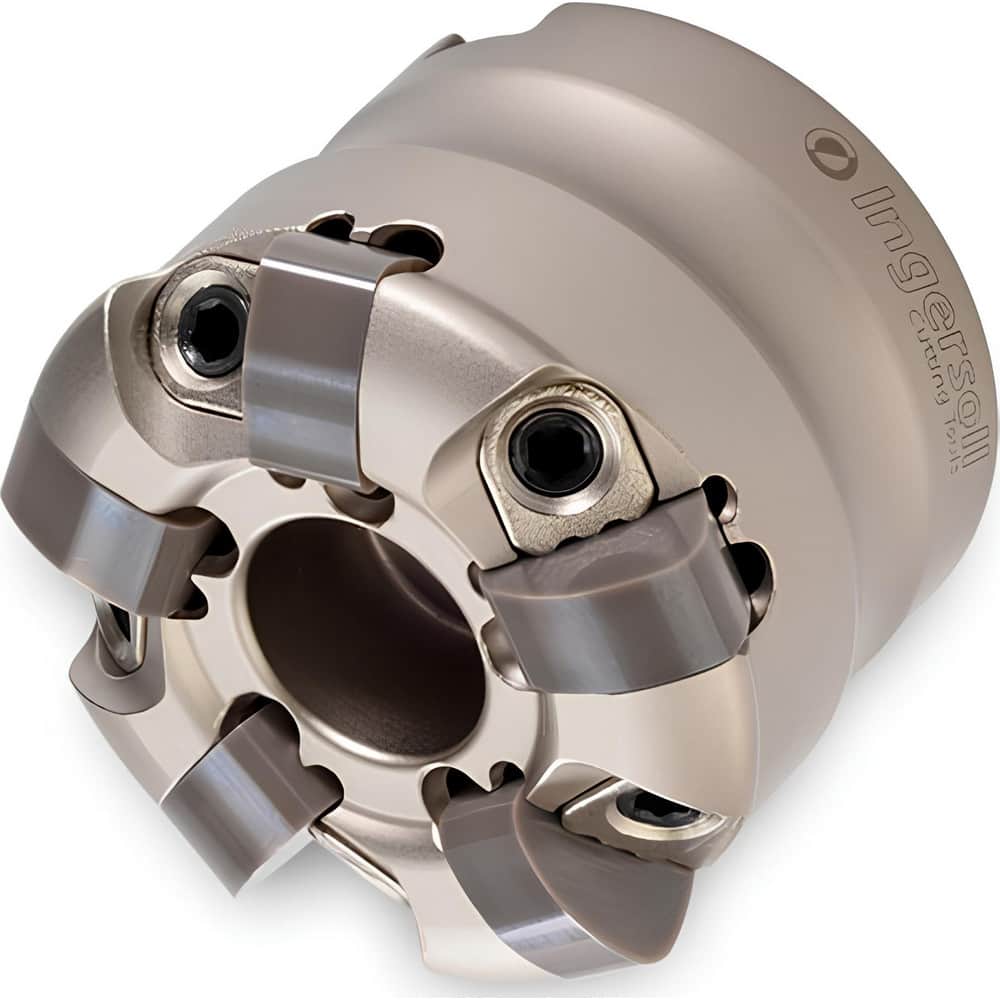

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 1.3240 in; Maximum Cutting Diameter: 2.0000 in; Maximum Depth Of Cut: 0.0980 in; Arbor Hole Diameter (mm): 0.75; Compatible Insert Size Code: 1207; Maximum Ramping Angle: 0.6 ™; Series: DG2H; Cutt
Item #: 98122112
Brand: Ingersoll Cutting Tools
Model #: 6342947
Product Specifications
| Minimum Cutting Diameter | 1.3240 in |
| Maximum Cutting Diameter | 2.0000 in |
| Maximum Depth Of Cut | 0.0980 in |
| Arbor Hole Diameter (mm) | 0.75 |
| Compatible Insert Size Code | 1207 |
| Maximum Ramping Angle | 0.6 ? |
| Series | DG2H |
| Cutter Style | DG2H |
| Number of Cutter Inserts | 4 |
| Through Coolant | Normal Pressure |
| Keyway Width | 7.8700 |
| Overall Height | 1.5750 in |
| Tool Application | Facing; Helical Interpolation; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
