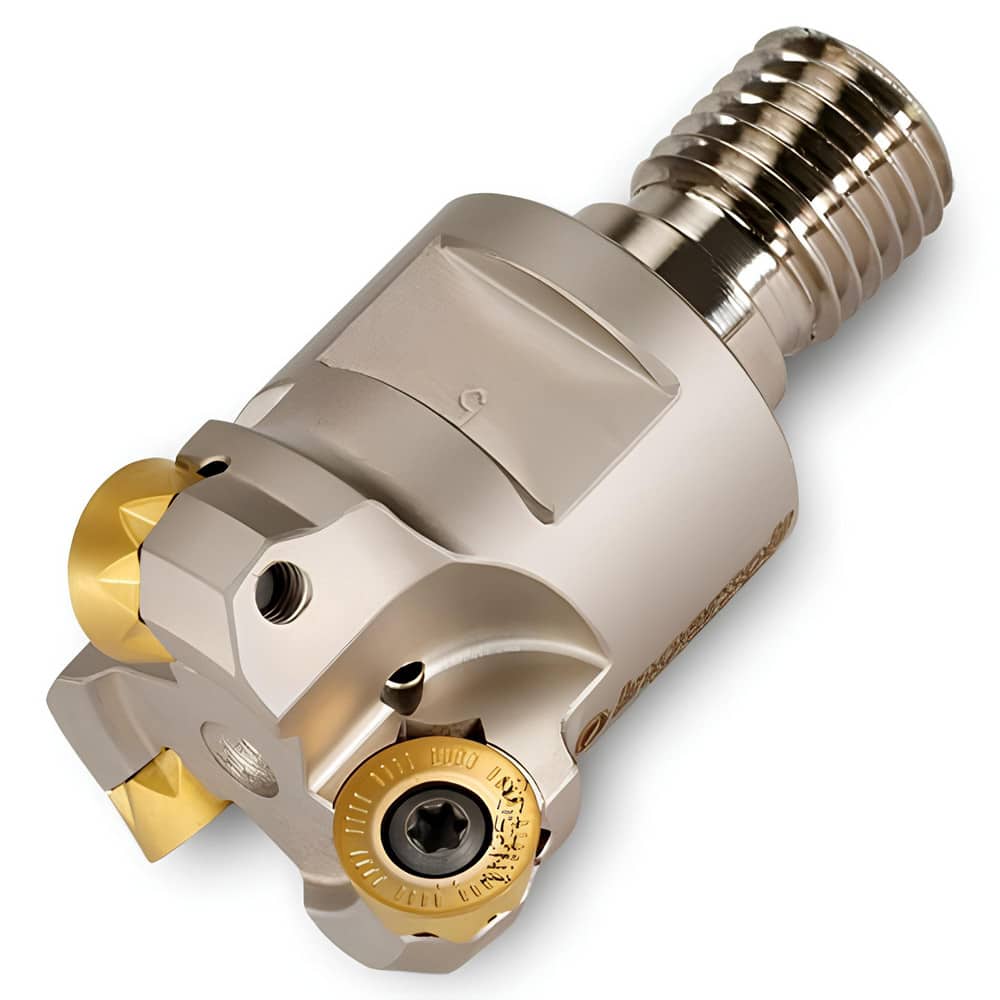

Indexable Copy End Mills; Maximum Depth Of Cut: 6.00 mm; Shank Type: Modular; Toolholder Style: 15B1B; Shank Diameter (Inch): 0.8189; Shank Diameter (mm): 0.8189; Maximum Ramping Angle: 2.8 ™; Compatible Insert Style: RJET; Compatible Insert Size Code: 1
Item #: 98132319
Brand: Ingersoll Cutting Tools
Model #: 3032515
Product Specifications
| Maximum Depth Of Cut | 6.00 mm |
| Shank Type | Modular |
| Toolholder Style | 15B1B |
| Shank Diameter (Inch) | 0.8189 |
| Shank Diameter (mm) | 0.8189 |
| Maximum Ramping Angle | 2.8 ? |
| Compatible Insert Style | RJET |
| Compatible Insert Size Code | 1204 |
| Number Of Cutter Inserts | 2 |
| Series | 15B1B |
| Overall Length (mm) | 1.50 |
| Overall Length (Decimal Inch) | 1.50 |
| Overall Length (Inch) | 1.50 |
| Flute Type | Straight |
| Functional Length | 38.10 mm |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 12.21 mm |
| Maximum Cutting Diameter (Decimal Inch) | 24.00 mm |
| Minimum Cutting Diameter (Decimal Inch) | 12.21 mm |
| Modular Connection Size | M12 |
