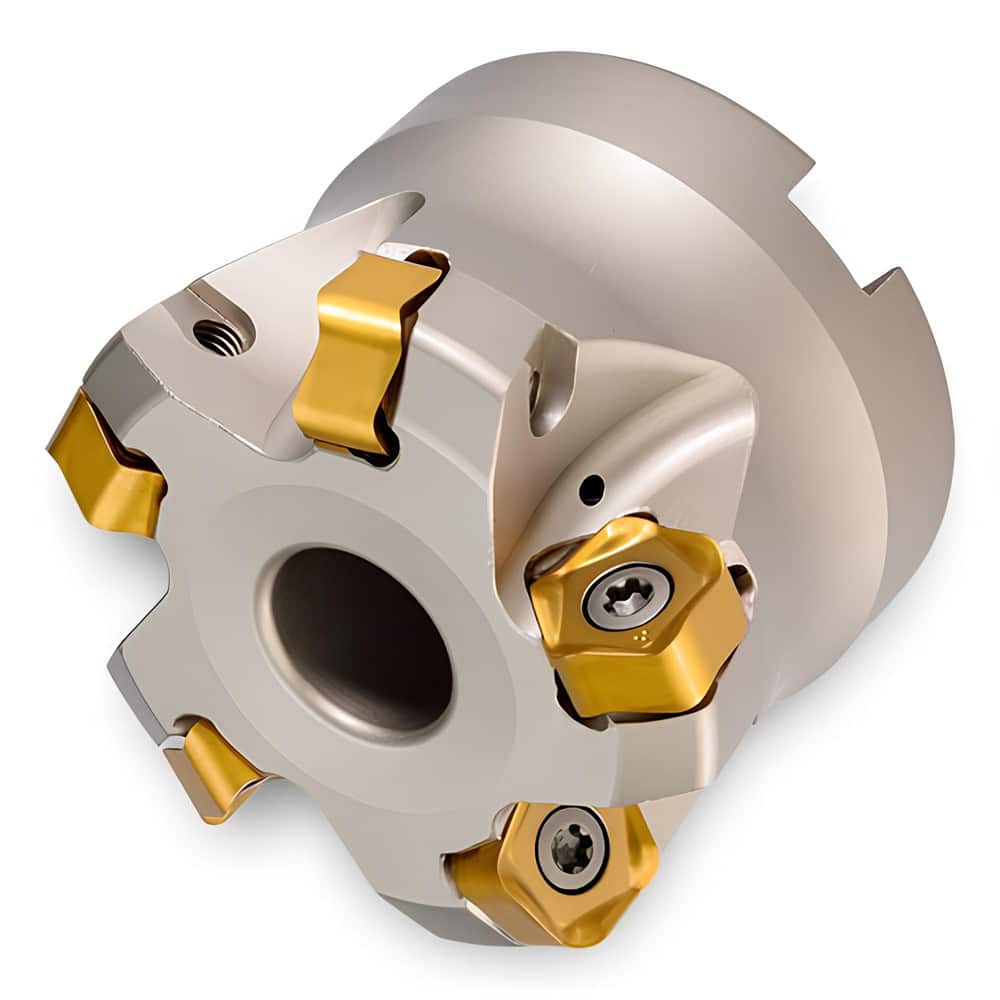

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 2.3500 in; Maximum Cutting Diameter: 3.0000 in; Maximum Depth Of Cut: 0.1180 in; Arbor Hole Diameter (mm): 1.00; Compatible Insert Size Code: 1006; Maximum Ramping Angle: 1.2 ™; Series: DP6P; Cutt
Item #: 98133234
Brand: Ingersoll Cutting Tools
Model #: 2926041
Product Specifications
| Minimum Cutting Diameter | 2.3500 in |
| Maximum Cutting Diameter | 3.0000 in |
| Maximum Depth Of Cut | 0.1180 in |
| Arbor Hole Diameter (mm) | 1.00 |
| Compatible Insert Size Code | 1006 |
| Maximum Ramping Angle | 1.2 ? |
| Series | DP6P |
| Cutter Style | DP6P |
| Number of Cutter Inserts | 6 |
| Through Coolant | Normal Pressure |
| Keyway Width | 9.6500 |
| Overall Height | 1.7500 in |
| Tool Application | Facing; Helical Interpolation; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
