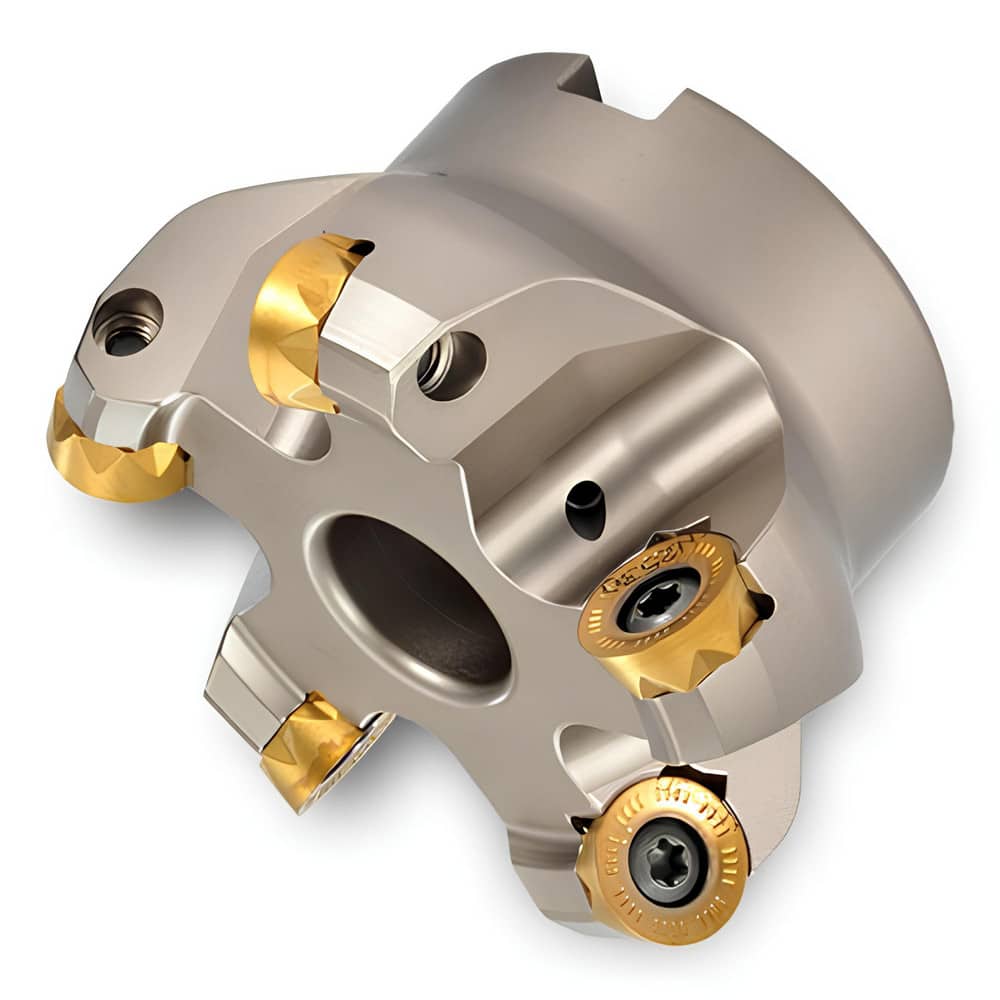

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.3149 in; Compatible Insert Size Code: RJ..1605; Arbor Hole Diameter (mm): 1.00; Maximum Ramping Angle: 5 ™; Overall Height (mm): 1.7500 in; Series: 1A7K; Number of Cutter Inserts: 5; Cutter Style: 1A7K;
Item #: 98135403
Brand: Ingersoll Cutting Tools
Model #: 3032526
Product Specifications
| Maximum Depth Of Cut | 0.3149 in |
| Compatible Insert Size Code | RJ..1605 |
| Arbor Hole Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 5 ? |
| Overall Height (mm) | 1.7500 in |
| Series | 1A7K |
| Number of Cutter Inserts | 5 |
| Cutter Style | 1A7K |
| Keyway Width | 9.5300 |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 9.5300 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 2.3730 in |
