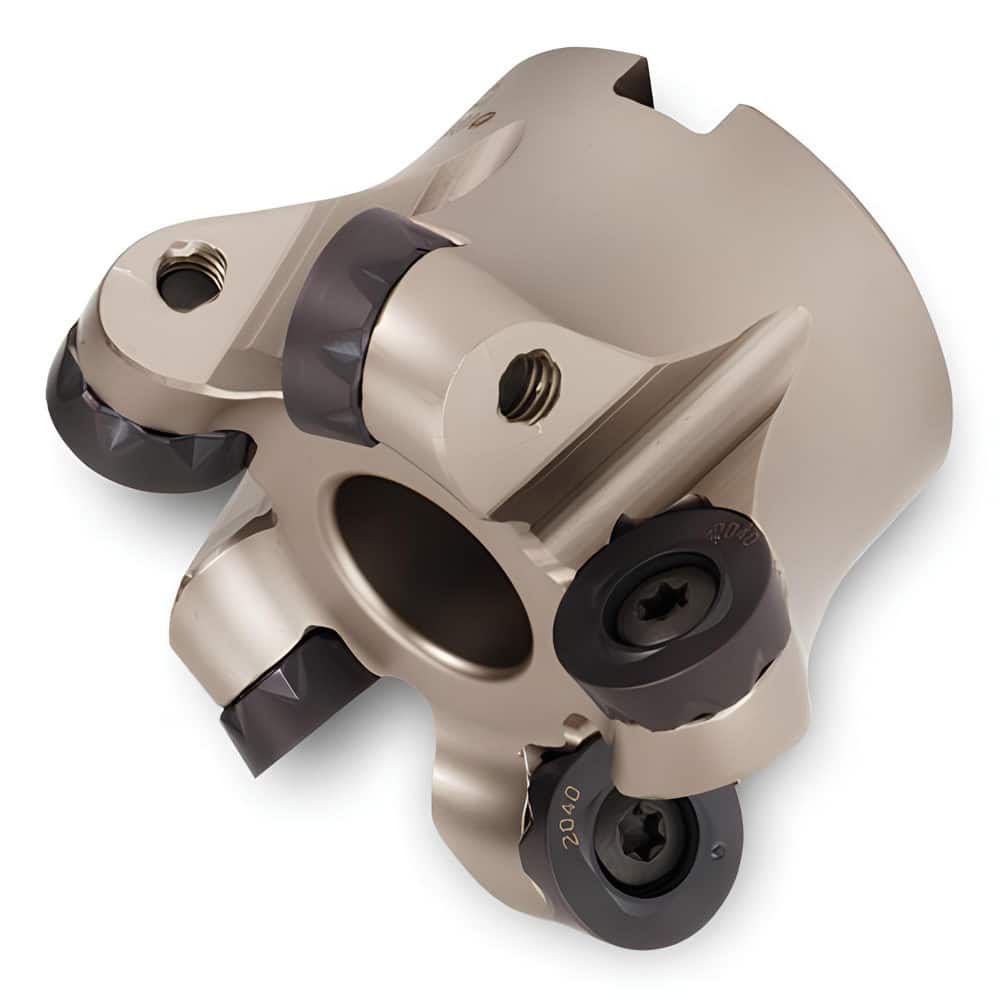

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.3750 in; Compatible Insert Size Code: RCL.1906; Arbor Hole Diameter (mm): 1.00; Maximum Ramping Angle: 8.5 ™; Overall Height (mm): 1.9750 in; Series: 5W6N; Number of Cutter Inserts: 5; Cutter Style: 5W6N
Item #: 98142839
Brand: Ingersoll Cutting Tools
Model #: 3024077
Product Specifications
| Maximum Depth Of Cut | 0.3750 in |
| Compatible Insert Size Code | RCL.1906 |
| Arbor Hole Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 8.5 ? |
| Overall Height (mm) | 1.9750 in |
| Series | 5W6N |
| Number of Cutter Inserts | 5 |
| Cutter Style | 5W6N |
| Keyway Width | 9.5300 |
| Tool Application | Facing; Plunging; Pocketing; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 9.5300 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 2.2500 in |
