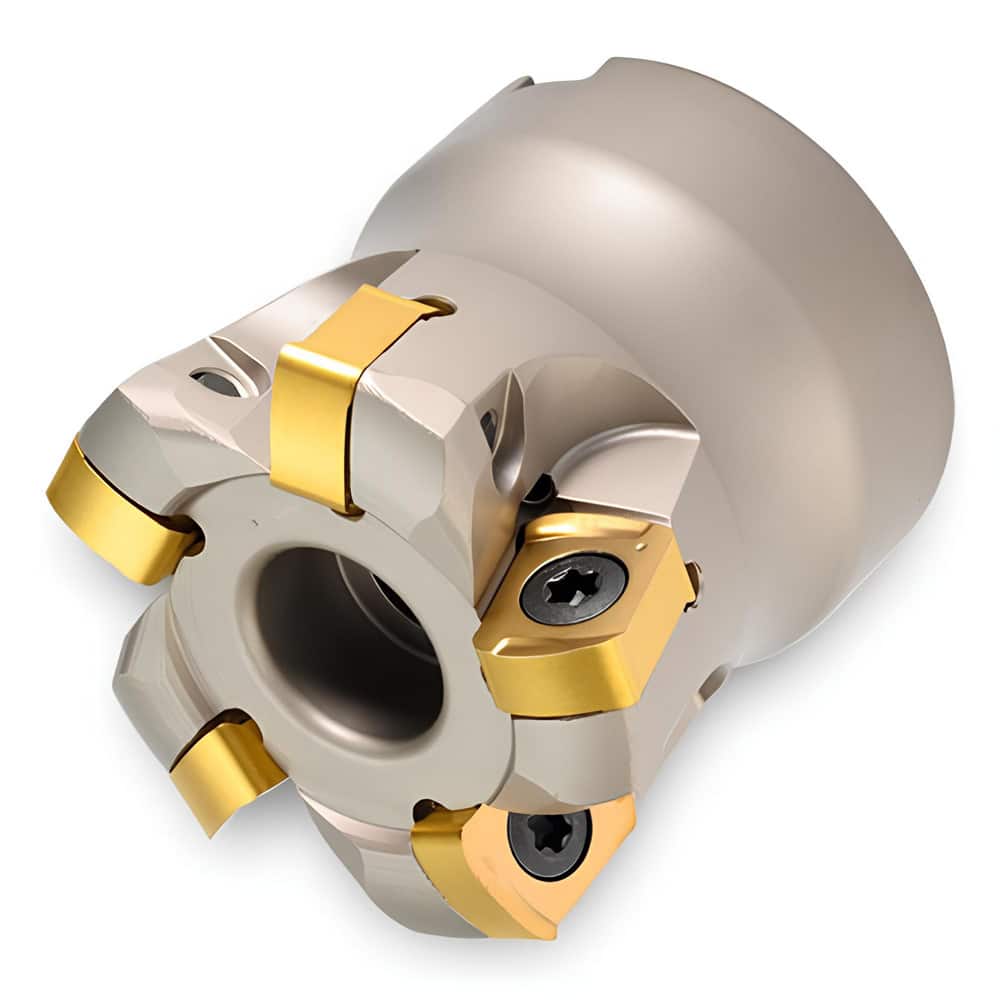

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 50.30 mm; Maximum Cutting Diameter: 66.00 mm; Maximum Depth Of Cut: 2.00 mm; Arbor Hole Diameter (mm): 22.00; Compatible Insert Size Code: 1105; Maximum Ramping Angle: 0.5 ™; Series: TG1J; Cutter
Item #: 98200488
Brand: Ingersoll Cutting Tools
Model #: 6307362
Product Specifications
| Minimum Cutting Diameter | 50.30 mm |
| Maximum Cutting Diameter | 66.00 mm |
| Maximum Depth Of Cut | 2.00 mm |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | 1105 |
| Maximum Ramping Angle | 0.5 ? |
| Series | TG1J |
| Cutter Style | TG1J |
| Number of Cutter Inserts | 6 |
| Through Coolant | Normal Pressure |
| Keyway Width | 15.8800 |
| Overall Height | 50.00 mm |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
