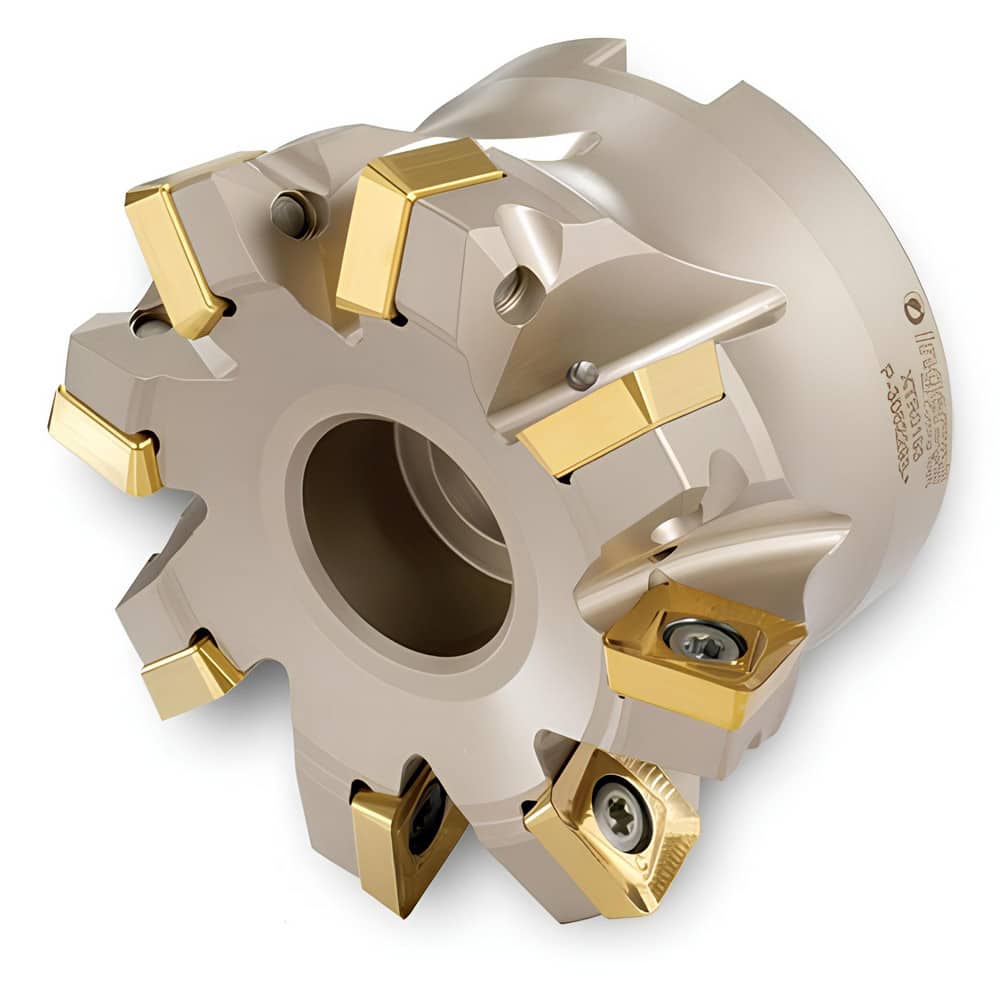

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 4.7570 in; Maximum Cutting Diameter: 6.0000 in; Maximum Depth Of Cut: 0.1470 in; Arbor Hole Diameter (mm): 1.50; Compatible Insert Size Code: 1906; Maximum Ramping Angle: 1.1 ™; Series: 5G5M; Cutt
Item #: 98300148
Brand: Ingersoll Cutting Tools
Model #: 3004766
Product Specifications
| Minimum Cutting Diameter | 4.7570 in |
| Maximum Cutting Diameter | 6.0000 in |
| Maximum Depth Of Cut | 0.1470 in |
| Arbor Hole Diameter (mm) | 1.50 |
| Compatible Insert Size Code | 1906 |
| Maximum Ramping Angle | 1.1 ? |
| Series | 5G5M |
| Cutter Style | 5G5M |
| Number of Cutter Inserts | 10 |
| Through Coolant | Normal Pressure |
| Keyway Width | 16.0000 |
| Overall Height | 2.5000 in |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
