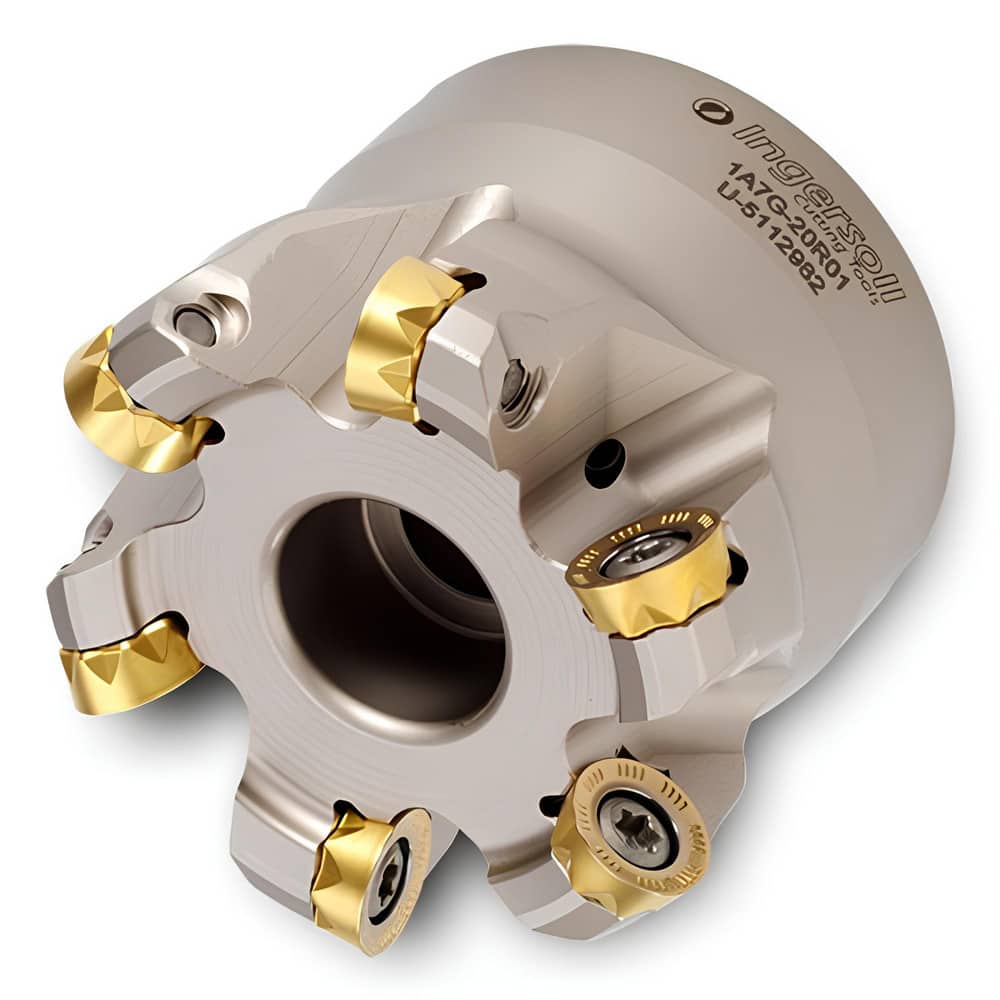

Indexable Copy Face Mill: 2″ Max Cut Dia Takes (6) RJ..1004 Inserts, 0.1968″ Max Depth, Through Coolant
Item #: 98312200
Brand: Ingersoll Cutting Tools
Model #: 2910447
Product Specifications
| Maximum Depth Of Cut | 0.1968 in |
| Compatible Insert Size Code | RJ..1004 |
| Arbor Hole Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 5 ? |
| Overall Height (mm) | 1.6300 in |
| Series | 1A7G |
| Number of Cutter Inserts | 6 |
| Cutter Style | 1A7G |
| Keyway Width | 7.9200 |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 7.9200 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.6910 in |
