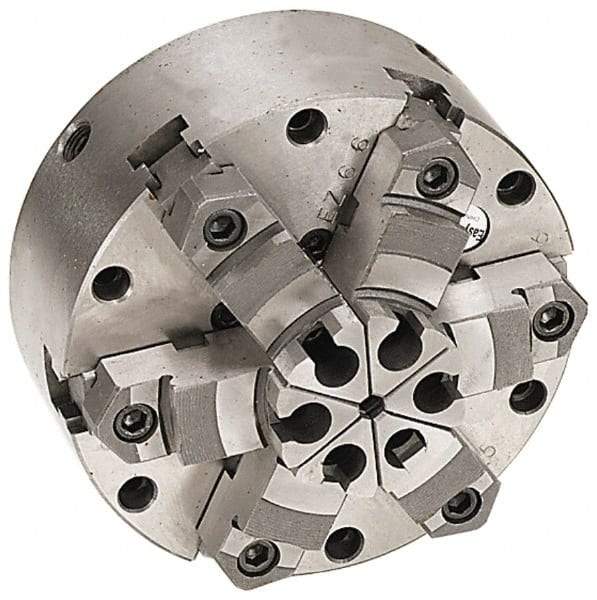

Pratt Burnerd America - 6 Jaws, 16" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Adjustable, Reversible, 1,300 Max RPM, 4.56" Through Hole Diam, Forged Steel
Item #: 98602873
Brand: Pratt Burnerd America
Model #: 1526300
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 16 |
| Number of Jaws | 6 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 4.5600 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 15 |
| Minimum Jaw Capacity (Inch) | 1-1/2 |
| Maximum Jaw Capacity (Inch) | 13 |
| Series | 263 |
| Adjustable | Yes |
| Jaw Type | Master Jaws |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 4.5600 |
| Maximum RPM | 1300 |
| Includes | Two-Piece American Standard Tongue & Groove Jaws |
