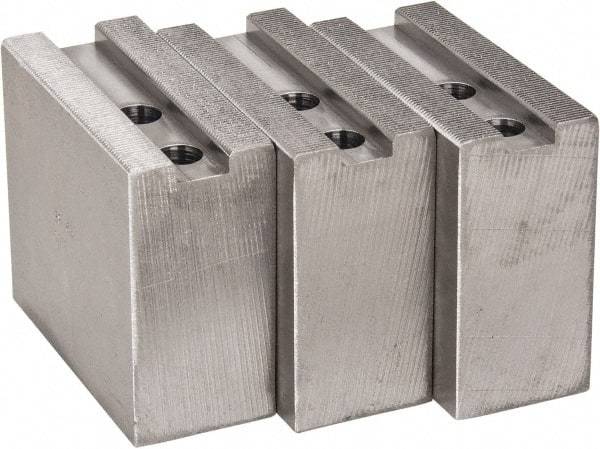

H & R Manufacturing - 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1.181" Btw Mount Hole Ctrs, 4" Long x 1-3/4" Wide x 3-1/2" High, 0.63" Groove, 12mm Fastener
Item #: 99558421
Brand: H & R Manufacturing
Model #: HR-82-3.5
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 11 |
| Minimum Compatible Chuck Diameter (Inch) | 11 |
| Overall Height (Inch) | 3-1/2 |
| Groove Width (Decimal Inch) | 0.6300 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1810 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 12 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 1-3/4 |
| Overall Length (Inch) | 4 |
| Material Grade | 1018 |
