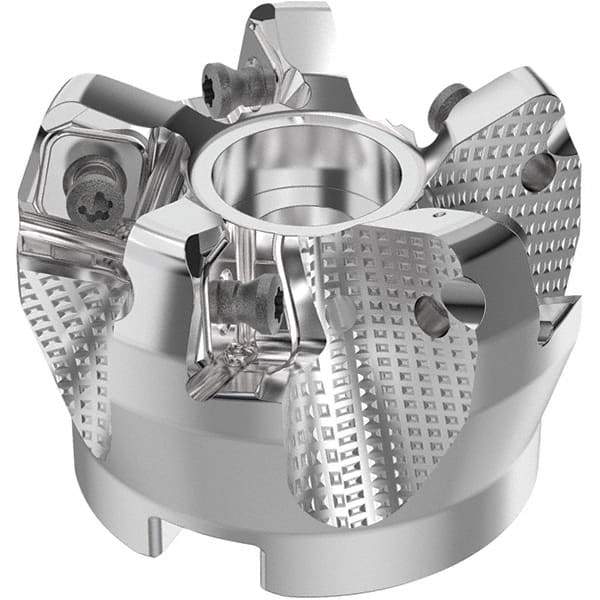

Seco - 50mm Cut Diam, 22mm Arbor Hole, 8mm Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 5 Inserts, SN.. Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series R220.56
Item #: 99877268
Brand: Seco
Model #: 03241902
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 71 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SN.. |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 5 |
| Cutting Rake Angle | -6 |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 10.40 |
| Maximum Body Diameter (Decimal Inch) | 2.1650 |
| Maximum RPM | 8500 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Overall Diameter (Decimal Inch) | 2.1650 |
| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
