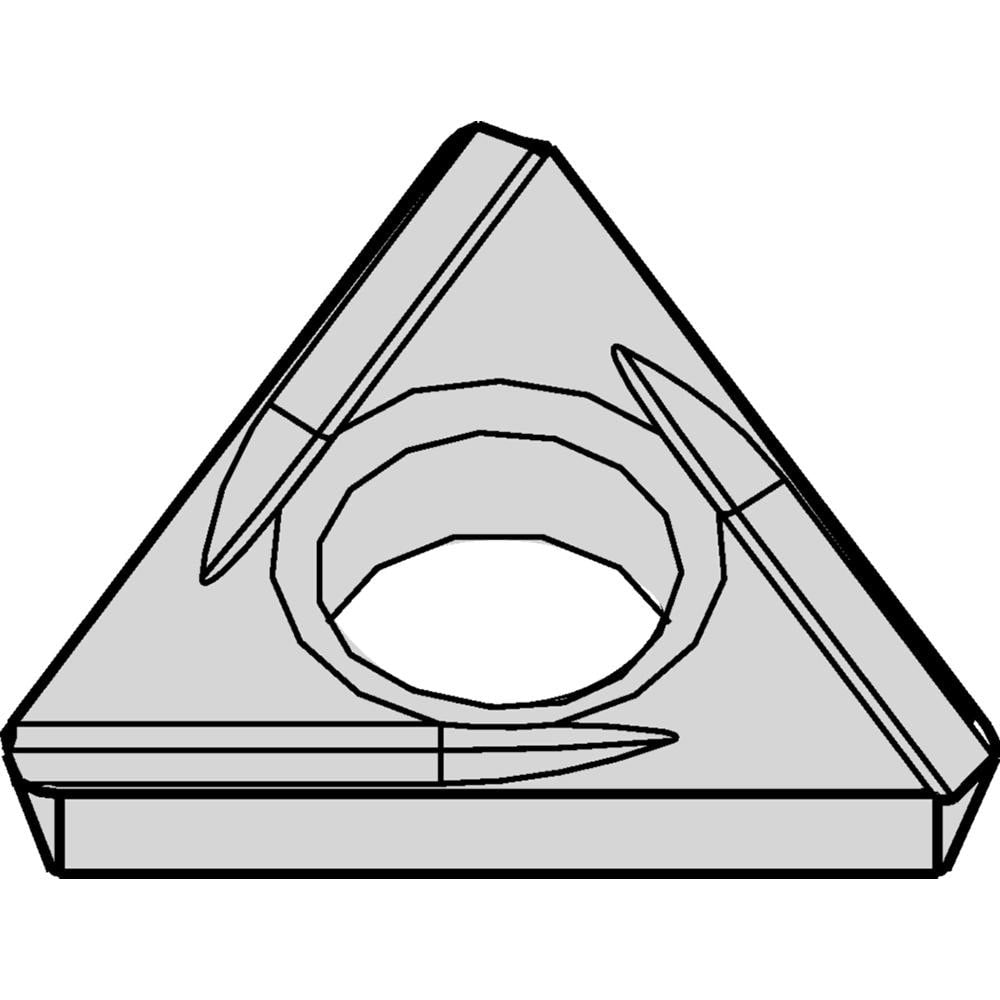

Brand: Widia / Part #: 2828472
Item #: 94121894
Brand: Widia
Model #: 2828472
Product Specifications
| Insert Style | TDHH |
| Insert Shape Code | T |
| Insert Size Code | 13081 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CM1 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.0949 |
| Maximum Depth of Cut (Decimal Inch) | 0.1720 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0469 |
| Clearance Code | D |
| Tolerance Code | H |
| Included Angle | 60.00 |
| Relief Angle | 15.000 |
| Series | TDHH |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2770 |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | TDHH13081L |
| Iso Code | TDHH07S104L |
| Manufacturers Catalog Number | TDHH13081L |
| Cutting Direction | Left Hand |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | TDHH |
| Width (Decimal Inch - 4 Decimals) | 0.1600 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
