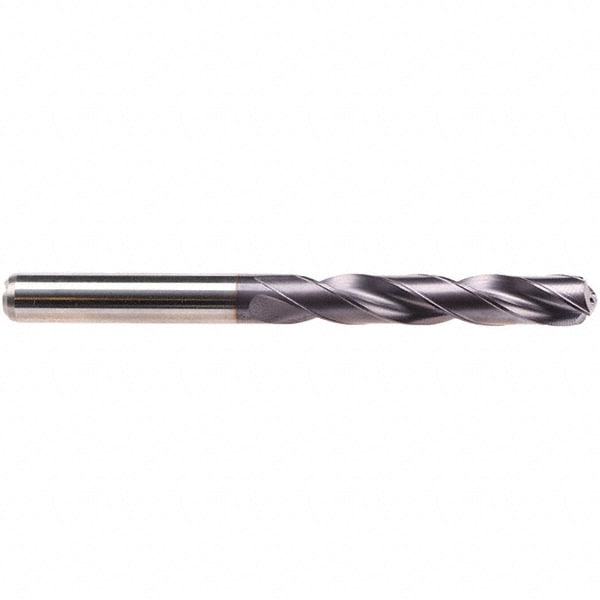

Brand: Emuge / Part #: TA213344.0840
Item #: 47934369
Brand: Emuge
Model #: TA213344.0840
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3307 |
| Drill Bit Size (mm) | 8.40 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Flute Length (mm) | 61.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (mm) | 49.00 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.70 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Material Grade | Sub Micrograin |
| Specification Designation | DIN |
