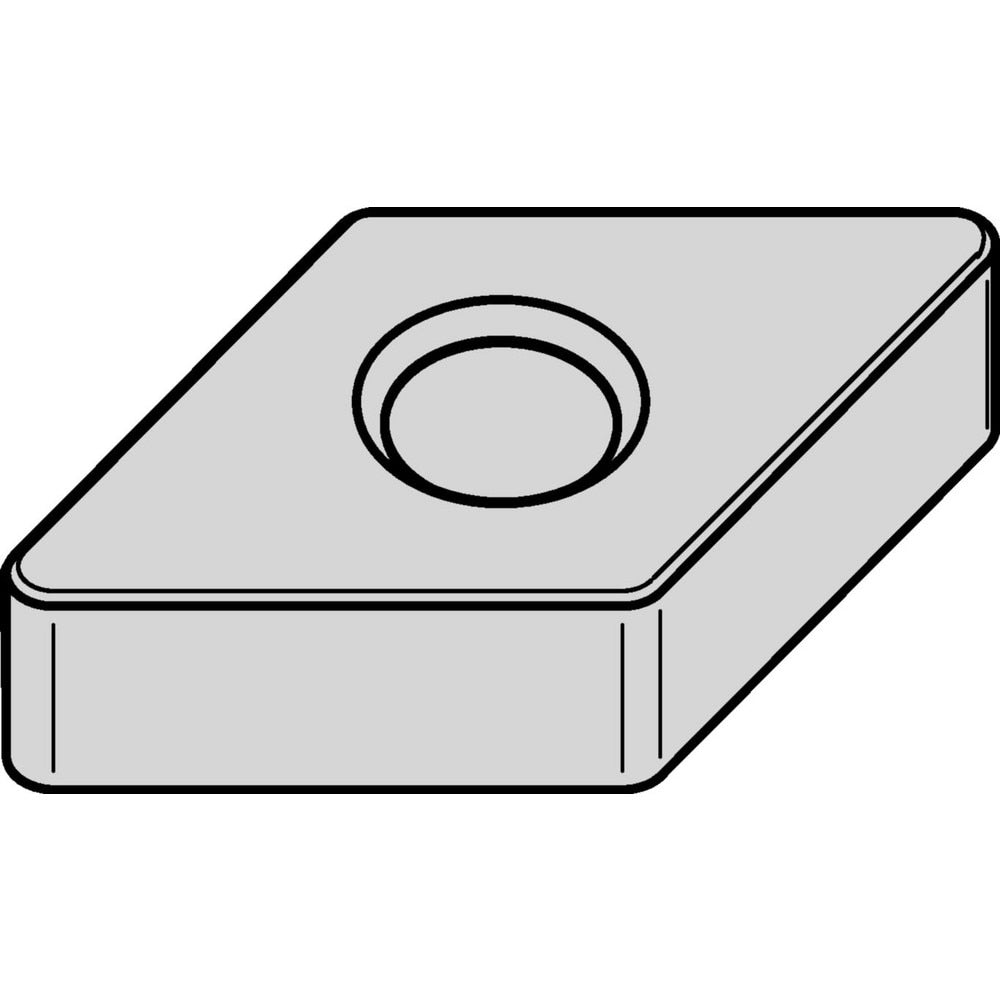

Brand: Widia / Part #: 4165841
Item #: 96214689
Brand: Widia
Model #: 4165841
Product Specifications
| Insert Style | DNMA |
| Insert Shape Code | D |
| Insert Size Code | 443 |
| Insert Shape | Diamond |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | TN20K |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 55.00 |
| Relief Angle | 0.000 |
| Series | DNMA |
| Coating Process | MTCVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6102 |
| Number Of Cutting Edges | 4 |
| Iso Code | DNMA150612 |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | None |
| Style | DNMA |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
