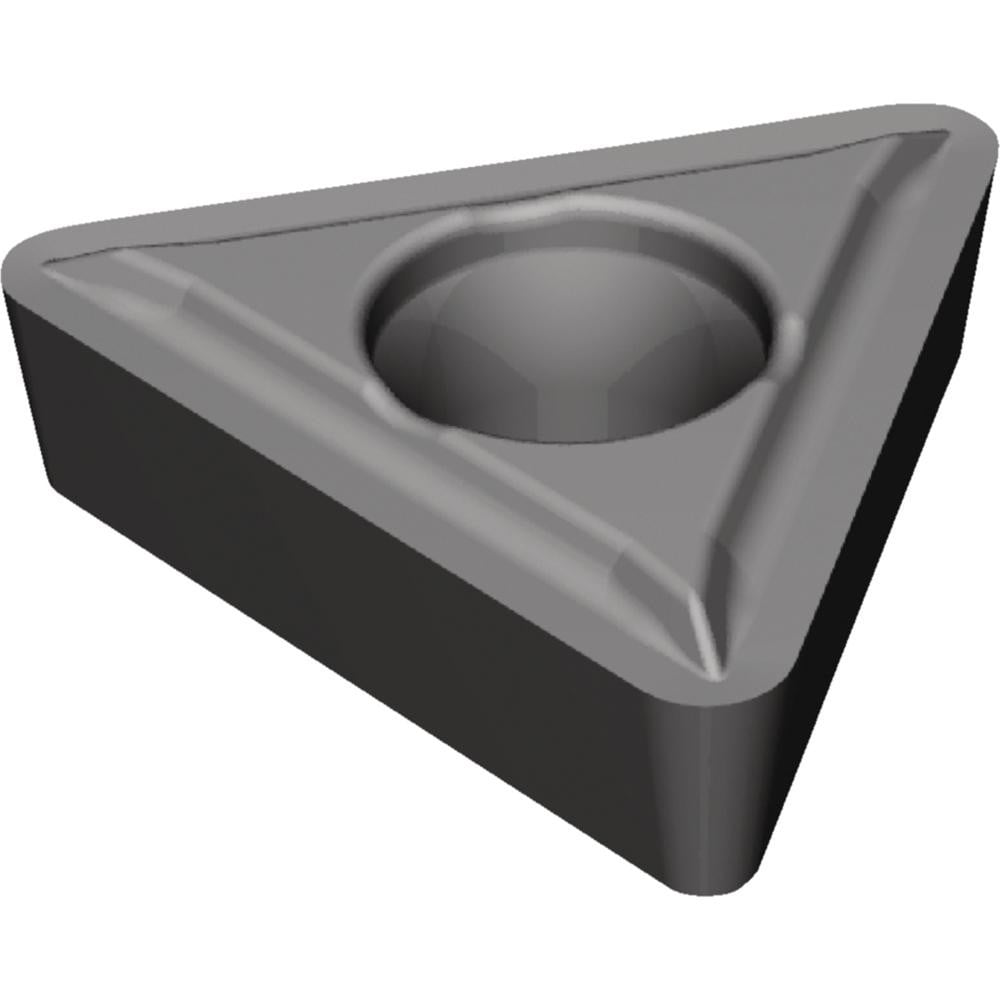

Brand: Widia / Part #: 4166572
Item #: 94089059
Brand: Widia
Model #: 4166572
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 432 |
| Insert Shape | Triangle |
| Coating/Finish | TiN; TiAlN |
| Manufacturer Grade | TN10U |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 60.00 |
| Relief Angle | 7.000 |
| Series | TCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.8661 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TCMT4321P |
| Iso Code | TCMT2204081P |
| Manufacturers Catalog Number | TCMT4321P |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | 1P |
| Style | TCMT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
