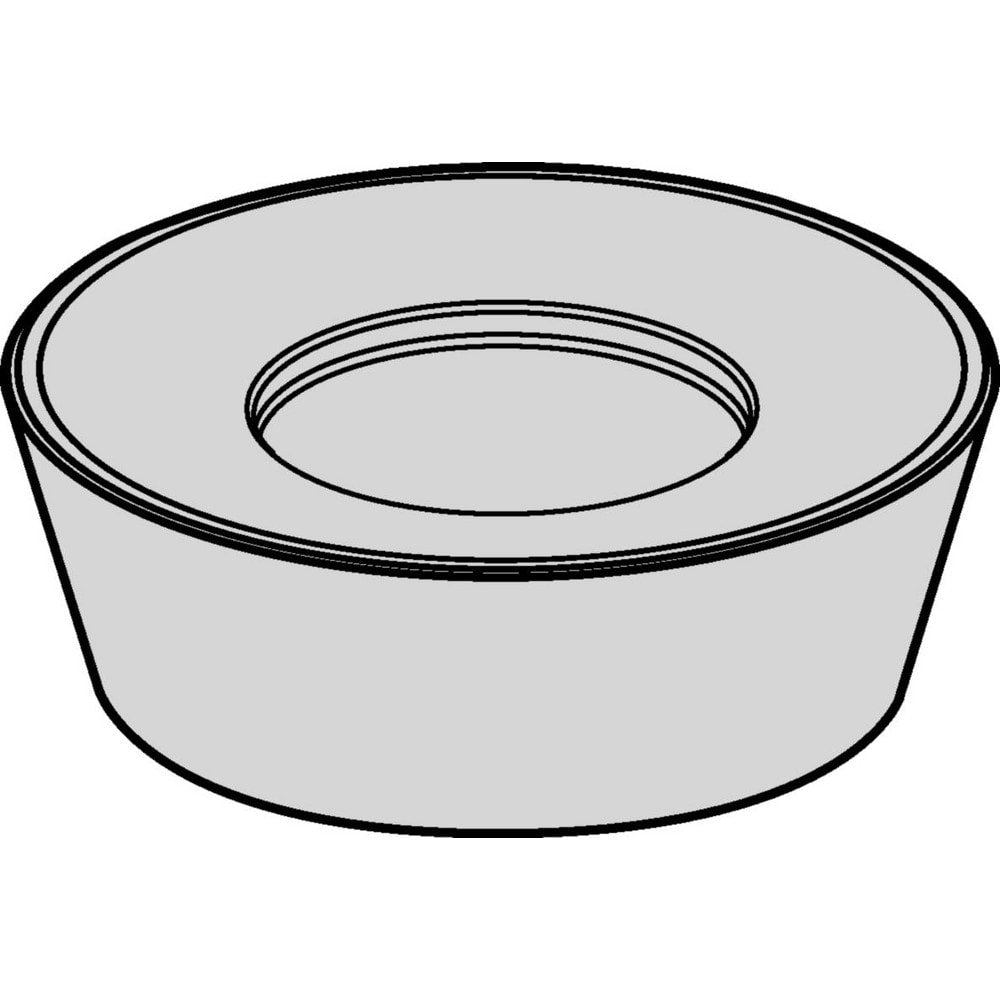

Brand: Widia / Part #: 3959624
Item #: 94124807
Brand: Widia
Model #: 3959624
Product Specifications
| Insert Style | RDPX |
| Insert Size Code | 12T3 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6525 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Insert Hand | Neutral |
| Relief Angle | 15.000 |
| Series | M170 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Round |
| Rake | Positive |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | RDPX12T3M0SNMM |
| Iso Code | RDPX12T3M0SNMM |
| Manufacturers Catalog Number | RDPX12T3M0SNMM |
| Cutter Series Compatibility | M170 RD12T3 IN |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Round |
| Length of Cut (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Length | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4720 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4720 |
