Brand: Widia / Part #: 5697764
Item #: 99554628
Brand: Widia
Model #: 5697764
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 33. |

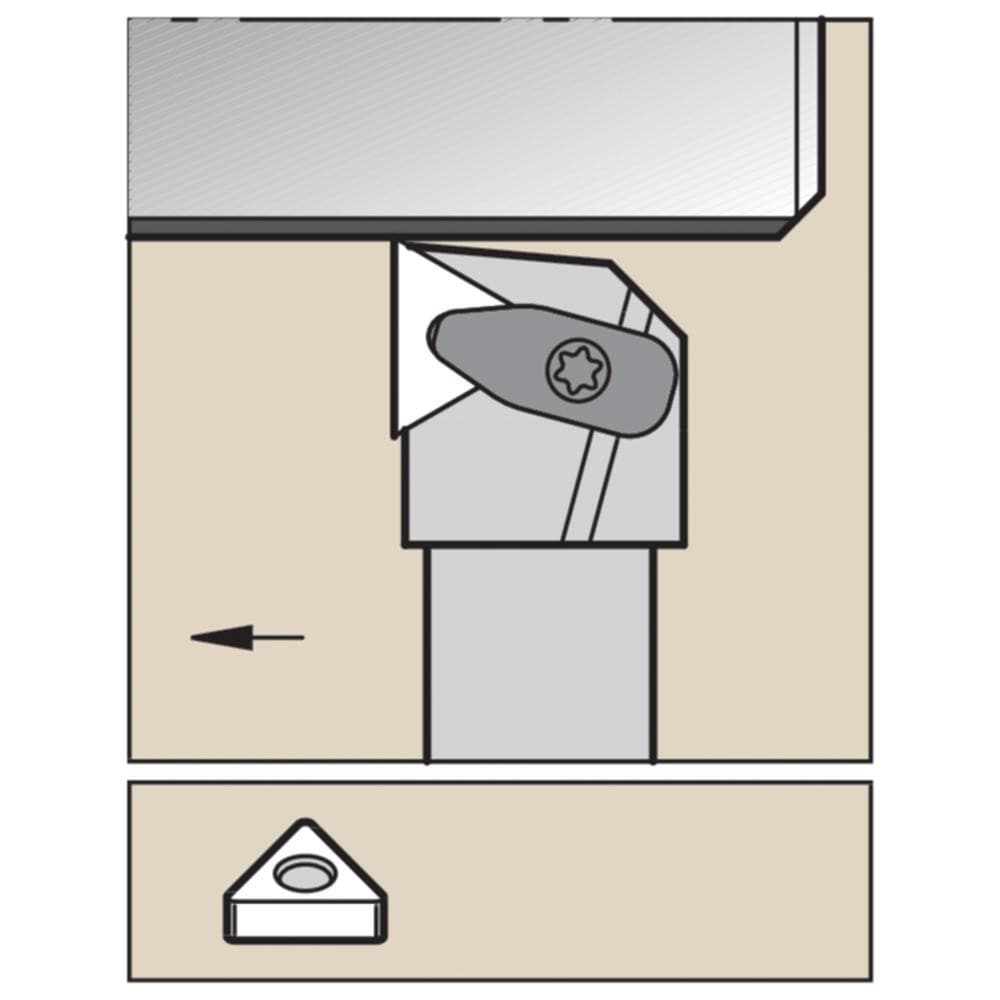

| Toolholder Style | DTGNR |
| Rake | Negative |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 9.000 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Insert Compatibility | TN..33. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | DTGN |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.1200 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| ISO Number | DTGNR123BKC3 |
| Complete Insert Compatibility | TN.. |
| Coolant Through | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
