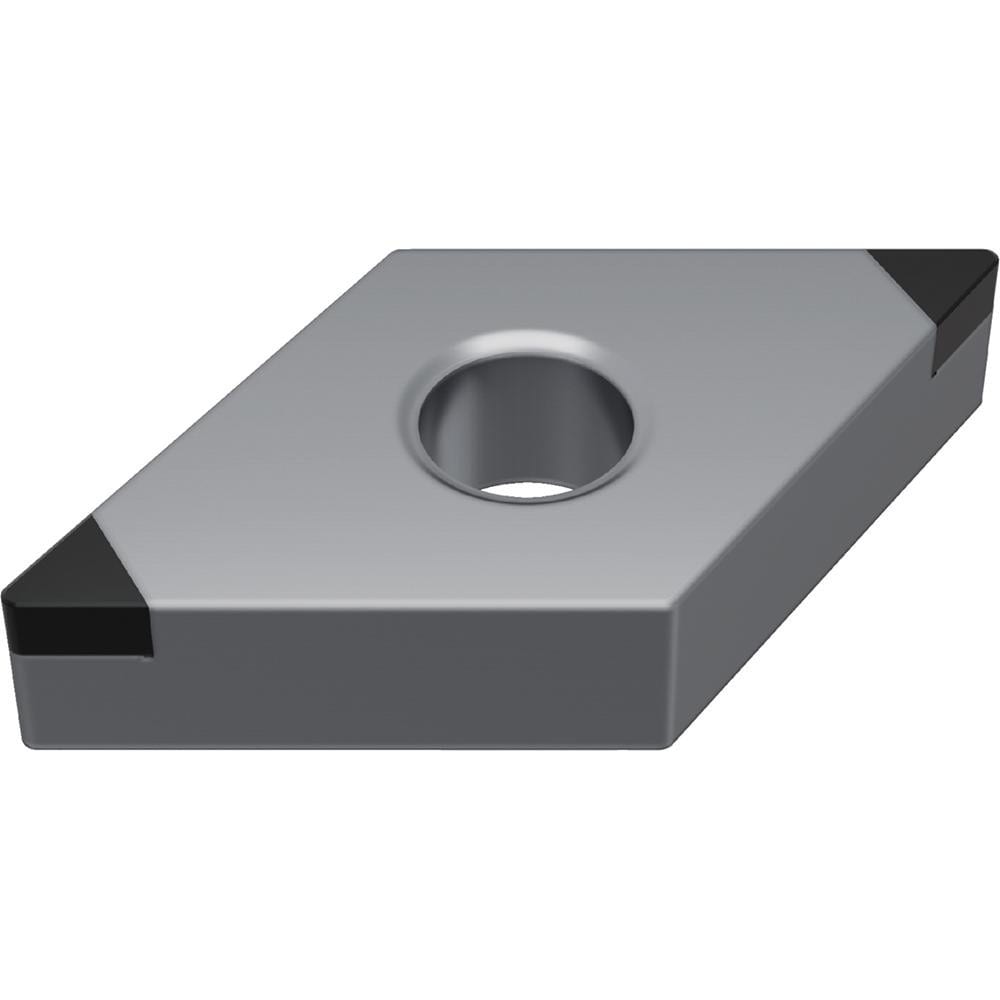

Brand: Widia / Part #: 6904829
Item #: 95606752
Brand: Widia
Model #: 6904829
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WBH20P |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.3052 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1883 |
| Clearance Code | N |
| Tolerance Code | G |
| Included Angle | 55.00 |
| Relief Angle | 0.000 |
| Series | DNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6104 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | DNGA432S0425MT |
| Iso Code | DNGA150408S01025MT |
| Manufacturers Catalog Number | DNGA432S0425MT |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Chip Breaker | MT |
| Cutting Edge Style | Chamfered and Rounded |
| Style | DNGA |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
