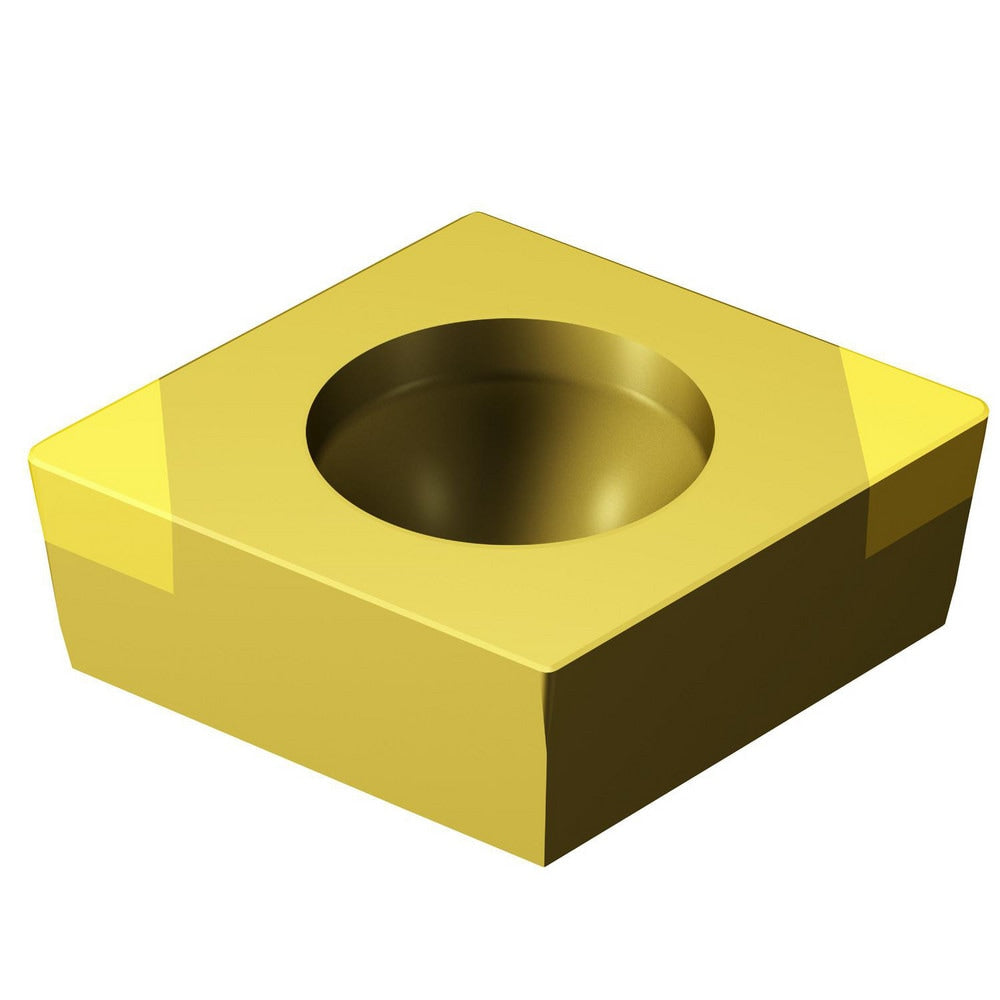

Brand: Sandvik Coromant / Part #: 8319590
Item #: 67619833
Brand: Sandvik Coromant
Model #: 8319590
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 602 |
| Insert Shape | Diamond 80? |
| Coating/Finish | TiN |
| Manufacturer Grade | 7105 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Cubic Boron Nitride |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 80.00 |
| Relief Angle | 7.000 |
| Series | CoroTurn? 107 |
| Coating Process | PVD |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | CCGW060204S01520FWG 7105 |
| Manufacturers Catalog Number | CCGW060204S01520FWG 7105 |
| Cutting Direction | Neutral |
| Chip Breaker | WG |
| Cutting Edge Style | Negative Land/ER Treated |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Width (Mm - 2 Decimals) | 6.35 |
