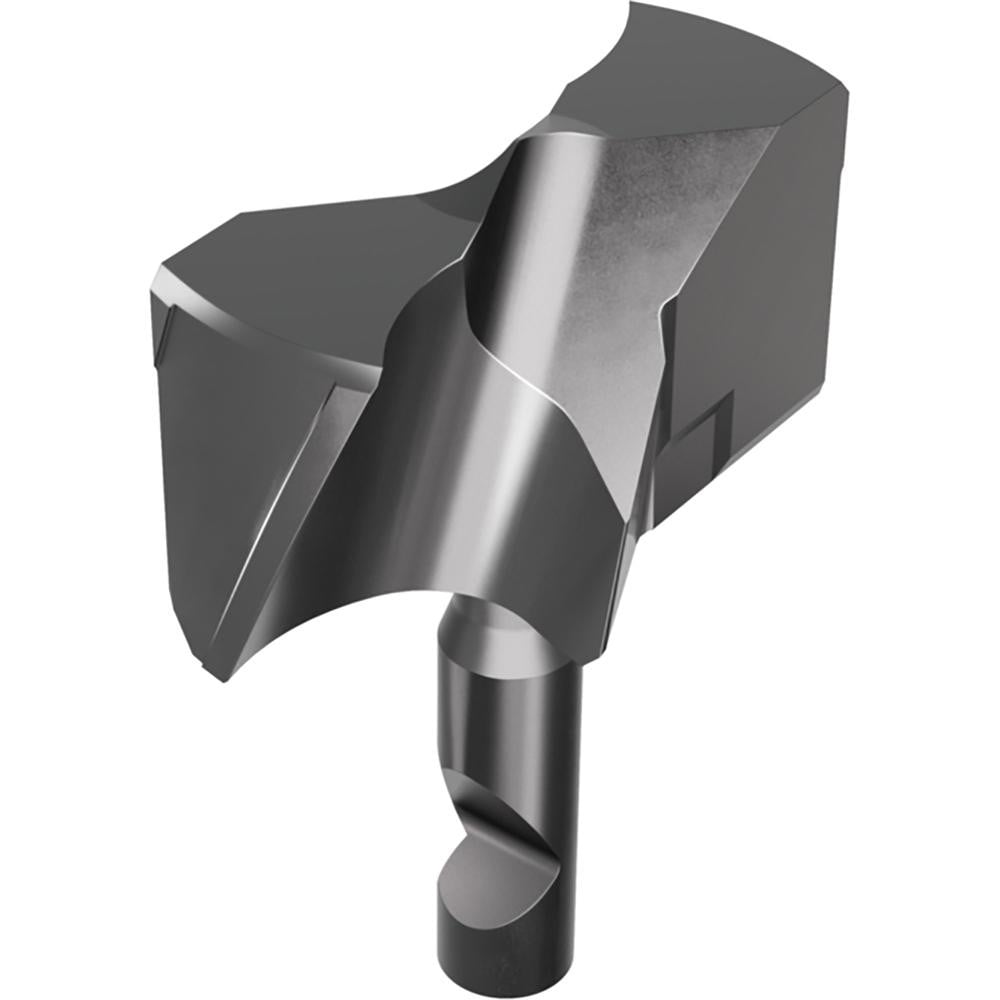

Brand: Widia / Part #: 6693111
Item #: 02463495
Brand: Widia
Model #: 6693111
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 0.6562 |
| Diameter (Decimal Inch) | 0.6562 |
| Point Angle | 150.00 |
| Diameter (Inch) | 21/32 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WP40PD |
| Material Grade | 11% Cobalt |
| Cutting Direction | Right Hand |
| Series | TDMX Drill |
| Coating Process | PVD |
| Insert Geometry | FPE |
| Insert Seat Size | A |
| Primary Workpiece Material | Hi-Temp Alloys; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Height (Decimal Inch) | 0.942100 |
| Overall Length/Projection (Decimal Inch) | 0.9421 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6562 |
| Head Length (Decimal Inch) | 0.9421 |
| Drill Point Angle | 150 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Inch) | 21/32 |
| ISO Number | TDMX16667FPEM |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 0.6562 |
| Cutting Diameter (Inch) | 21/32 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 0; 150 |
| Number Of Flutes | 2 |
