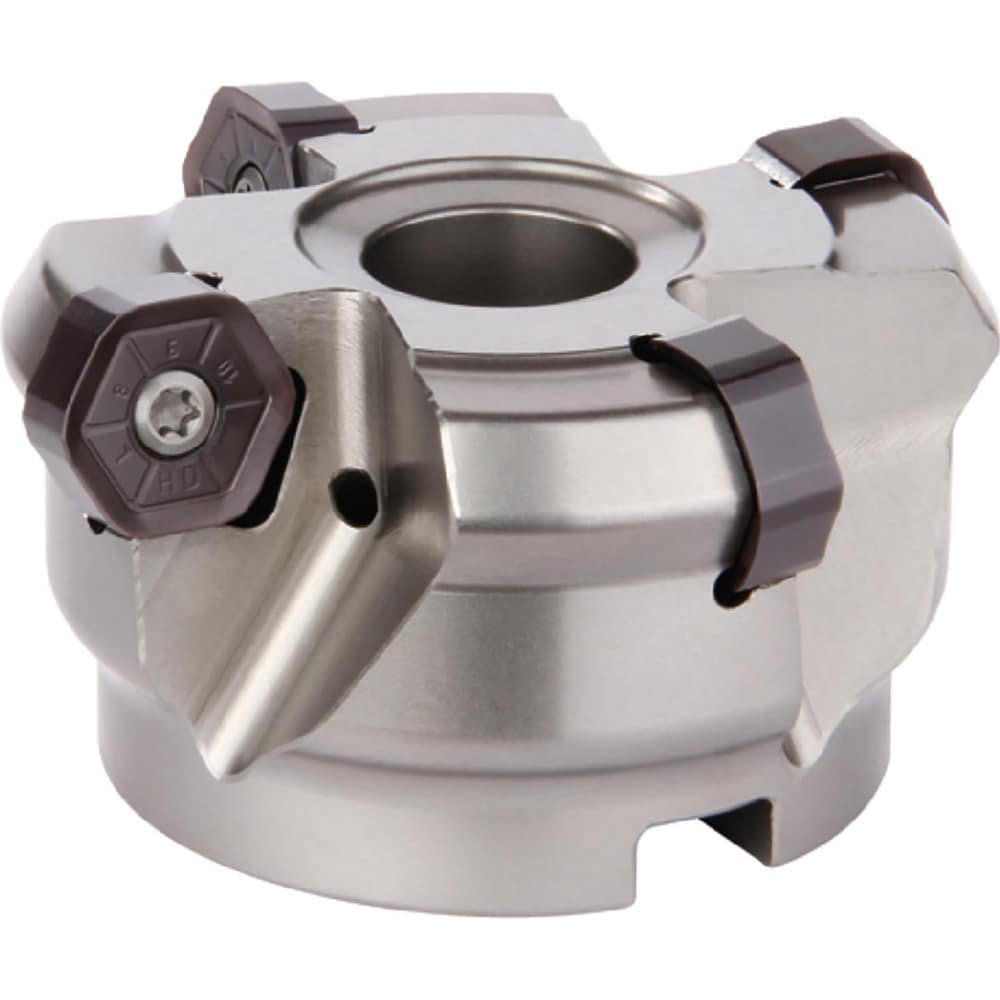

Brand: Widia / Part #: 4147880
Item #: 97477830
Brand: Widia
Model #: 4147880
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.3358 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 58.000 |
| Compatible Insert Size Code | HN..0905 |
| Cutter Style | M1200 HD |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1200 HD |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Maximum Body Diameter (Decimal Inch) | 3.1900 |
| Maximum RPM | 8300.000 |
| Tool Application | Chamfering; Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | HNGJ0905ANENLD |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
