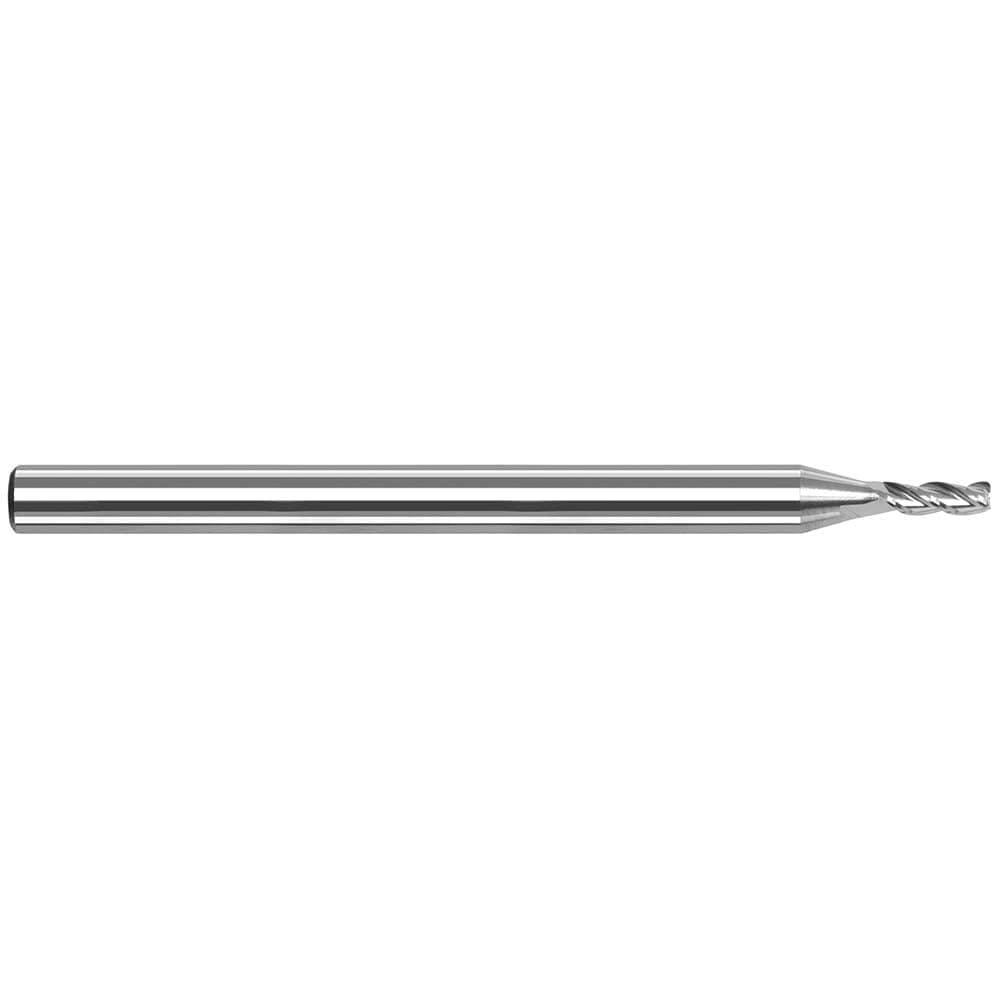

Brand: Harvey Tool / Part #: 840747
Item #: 82836693
Brand: Harvey Tool
Model #: 840747
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.010 |
| Coating/Finish | Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Length of Cut (Inch) | 1/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.0470 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Series | Variable Helix End Mills for Aluminum Alloys - Corner Radius |
