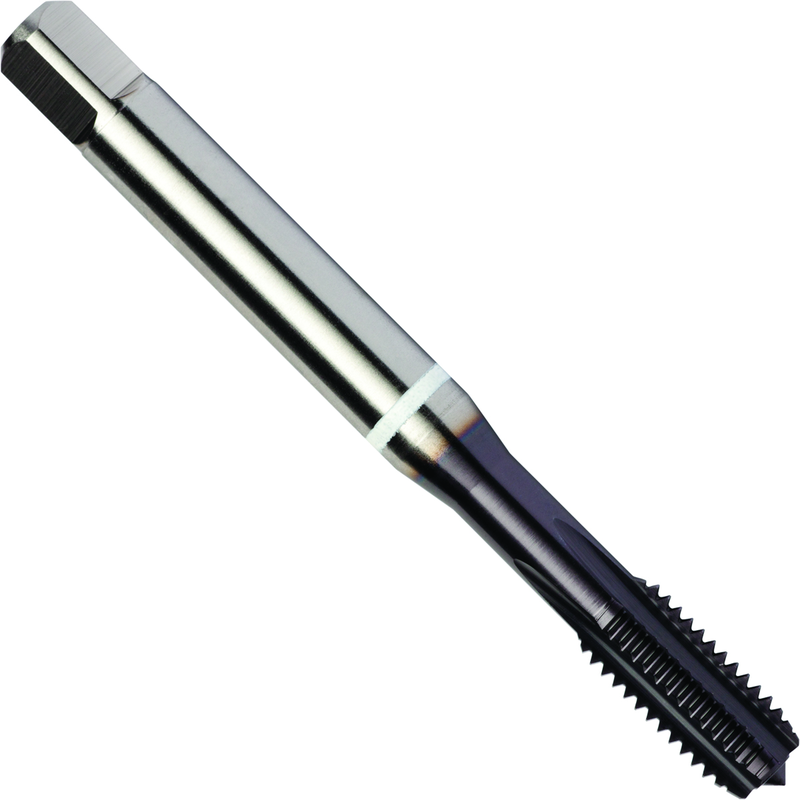

7/8-9 4FL H6 CO SBOTT TAP

Item #: DS047350220
Manufacturer: Dormer
Mfg #: 7350220

Technical Specifications:
•Brand Name: Dormer •Class of Fit: H6 •Coating: TiAlN/Top •List No.: E814 •Material: HSS-E-PM •Model Number: 7350220 •Number of Flutes: 4 •Overall Length: 5.512 •Size: 7/8-9 •Style: Semi-Bottoming •Thread Length: 1.339 •Thread Type: UNC •Threads Per Inch: 9

Description:
•TiAlN top coating •Excellent performance when threading both through and blind holes in short chipping materials •Internal coolant with axial outlet - Reduces interruptions of the production process by providing optimum chip evacuation in both horizontal and vertical blind hole machining

Shipping Info:
•Actual Weight - .7000 •Dimensions - Height: 1.07 Length: 5.66 Width: 1.07
