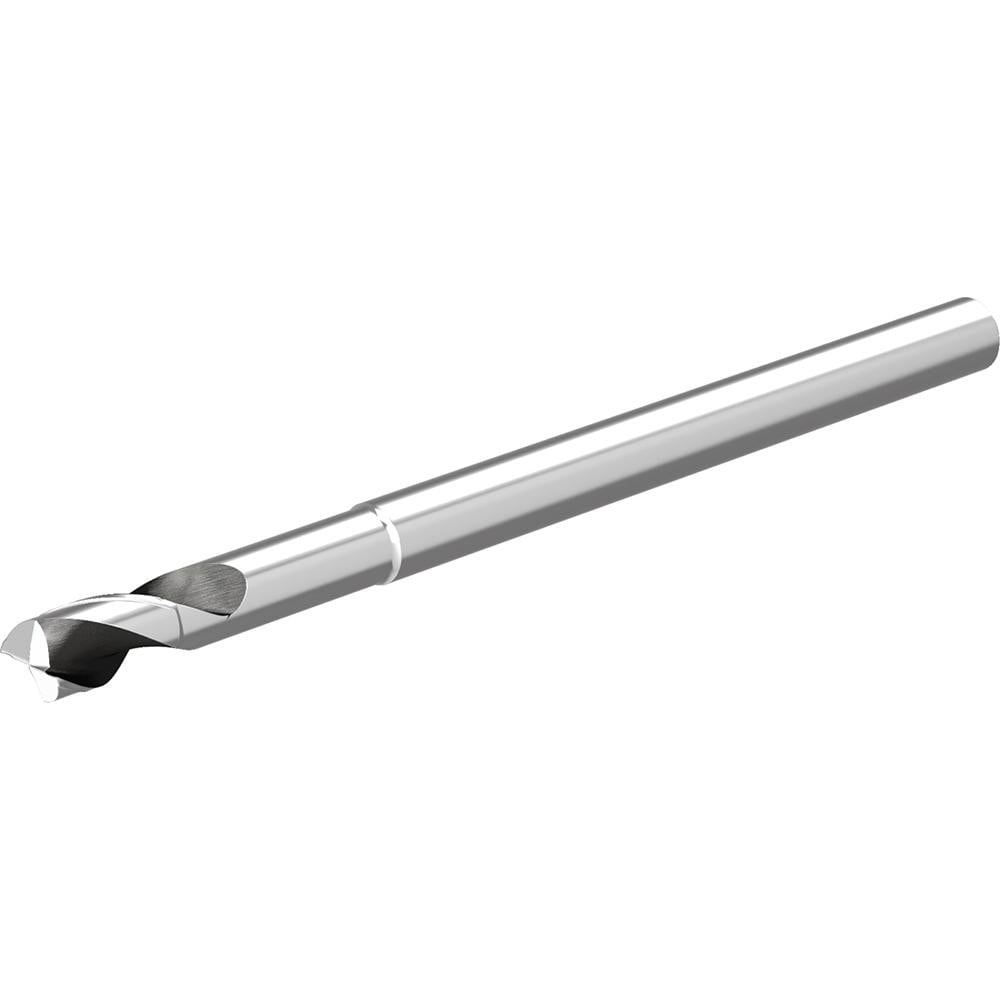

Brand: Widia / Part #: 6859690
Item #: 99046617
Brand: Widia
Model #: 6859690
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 33 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material Grade | Uncoated |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 1.5000 |
| Neck Diameter (Decimal Inch) | 0.3525 |
| Reach Length (Inch) | 2 |
| Reach Length (Decimal Inch) | 2.0000 |
| Through Coolant | No |
| Series | 2AF9 |
