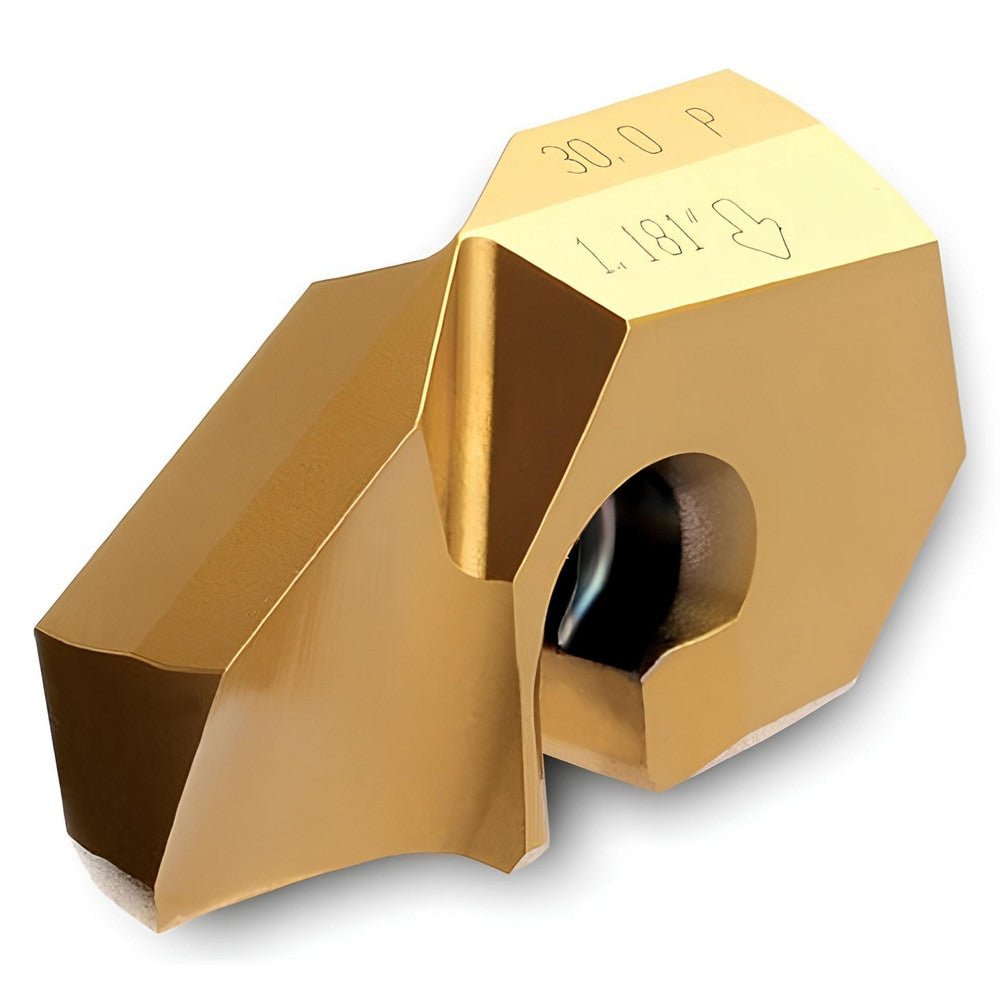

Brand: Ingersoll Cutting Tools / Part #: 6137368
Item #: 95683694
Brand: Ingersoll Cutting Tools
Model #: 6137368
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.0320 |
| Diameter (Decimal Inch) | 1.0320 |
| Point Angle | 140.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | LPA |
| Coating Process | PVD |
| Insert Seat Size | 26 |
| Primary Workpiece Material | Hi Temp Alloys; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Height (Decimal Inch) | 0.455000 |
| Overall Length/Projection (Decimal Inch) | 0.4550 |
| Head Length (Decimal Inch) | 0.4550 |
| Insert Holding Method | Twist |
| ISO Number | LPA2620R01 IN2505 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 1.0320 |
| Flute Length (mm) | 7.47 |
| Point Type | Flat Bottom |
| Style | LPA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
