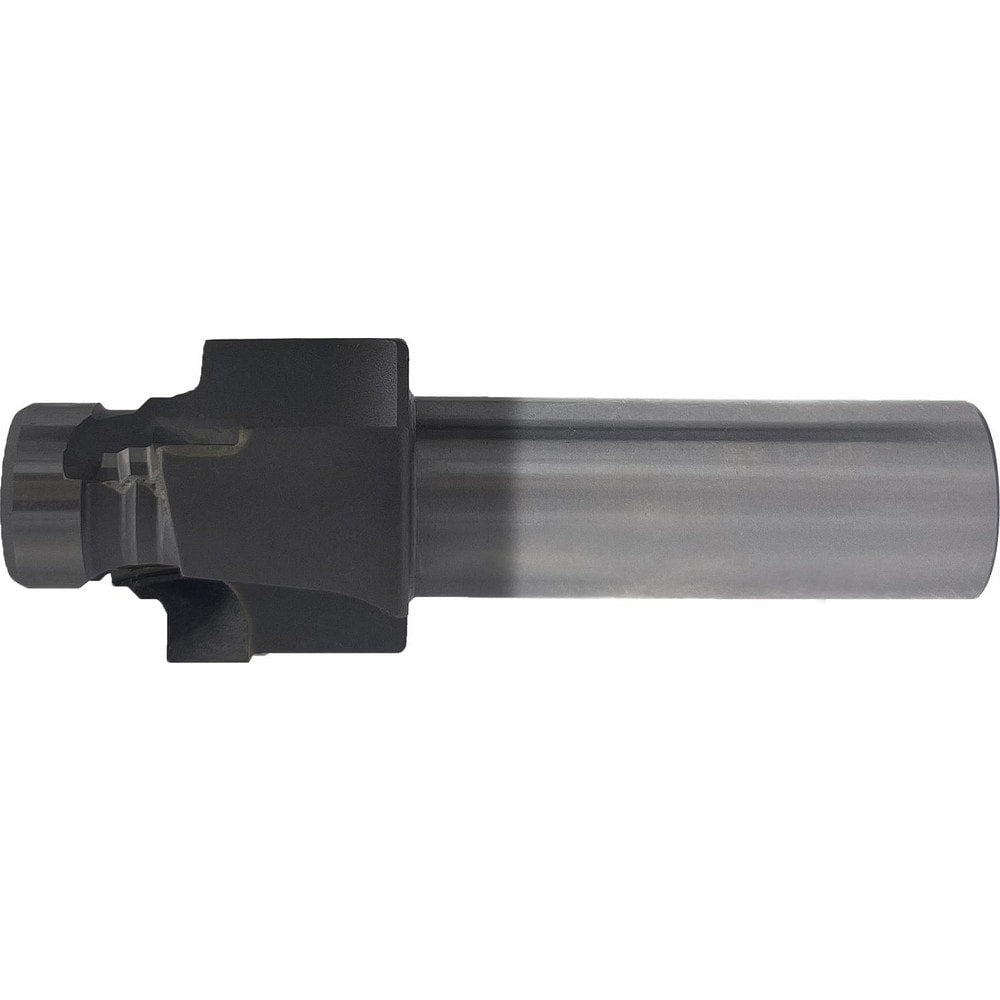

Brand: Scientific Cutting Tools / Part #: AS5202-05SA
Item #: 99228660
Brand: Scientific Cutting Tools
Model #: AS5202-05SA
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.9500 |
| Tube Outside Diameter Compatibility (Inch) | 5/16 |
| Pilot Type | Plain |
| Port Thread Size (Decimal Inch) | 1/2-20 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 5.000 |
| Minimum Pilot Diameter (Decimal Inch) | 0.4540 |
| Pilot Length | 0.3820 |
| Overall Length (Decimal Inch) | 3.1200 |
| Number Of Flutes | 3 |
| Standards | AS5202; MS33649 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Standard |
| Seal Angle | 30 |
| Thread Type | UNJF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Pilot Diameter (Decimal Inch) | 0.5195 |
| Head Length (Decimal Inch) | 1.1200 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
