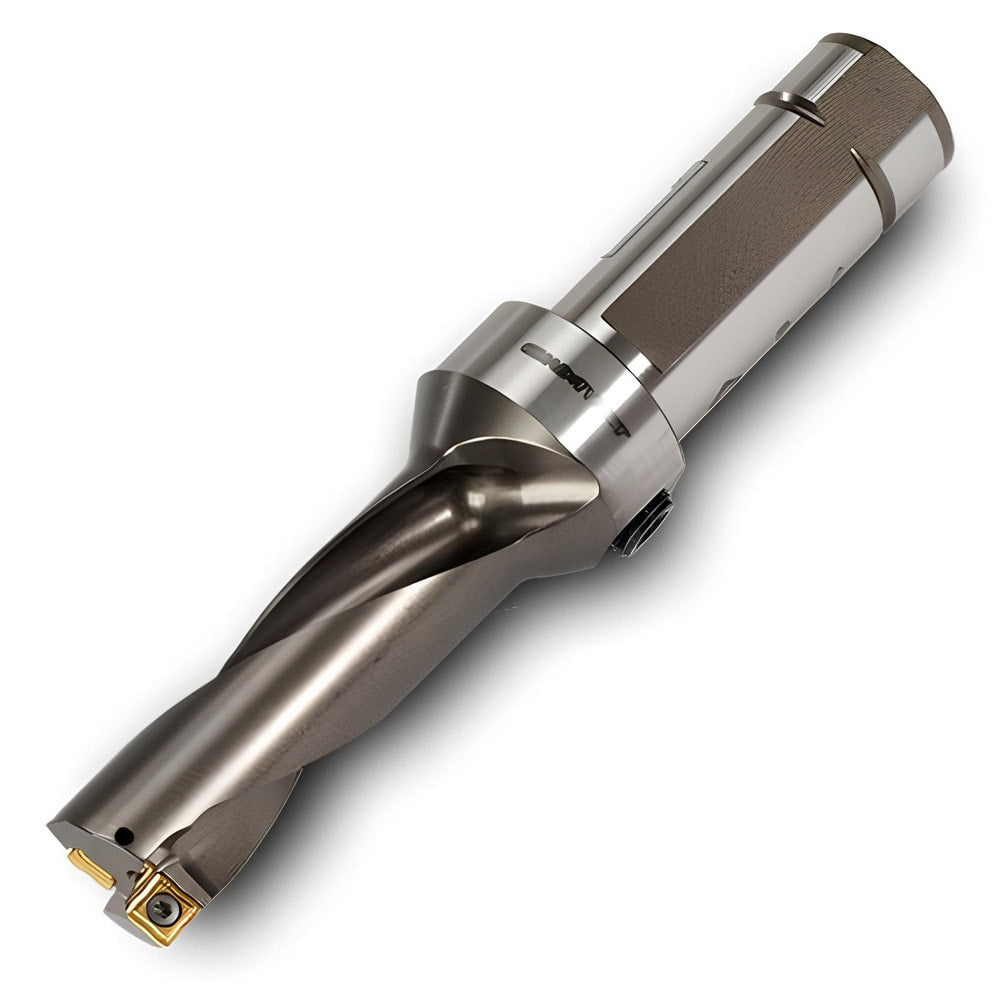

Brand: Ingersoll Cutting Tools / Part #: 6108570
Item #: 37810819
Brand: Ingersoll Cutting Tools
Model #: 6108570
Product Specifications
| Maximum Drill Depth | 6.5600 in |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Depth of Cut (Decimal Inch) | 6.5600 |
| Shank Type | Combination |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 7.8700 |
| Toolholder Style | QR03 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3120 |
| Overall Length (Decimal Inch) | 11.0200 |
| Overall Length | 11.02 |
| Through Coolant | Yes |
| Series | QR |
| Flute Length (Decimal Inch) | 6.5600 |
| Shank Length (Decimal Inch) | 3.1600 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 1.3120 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
