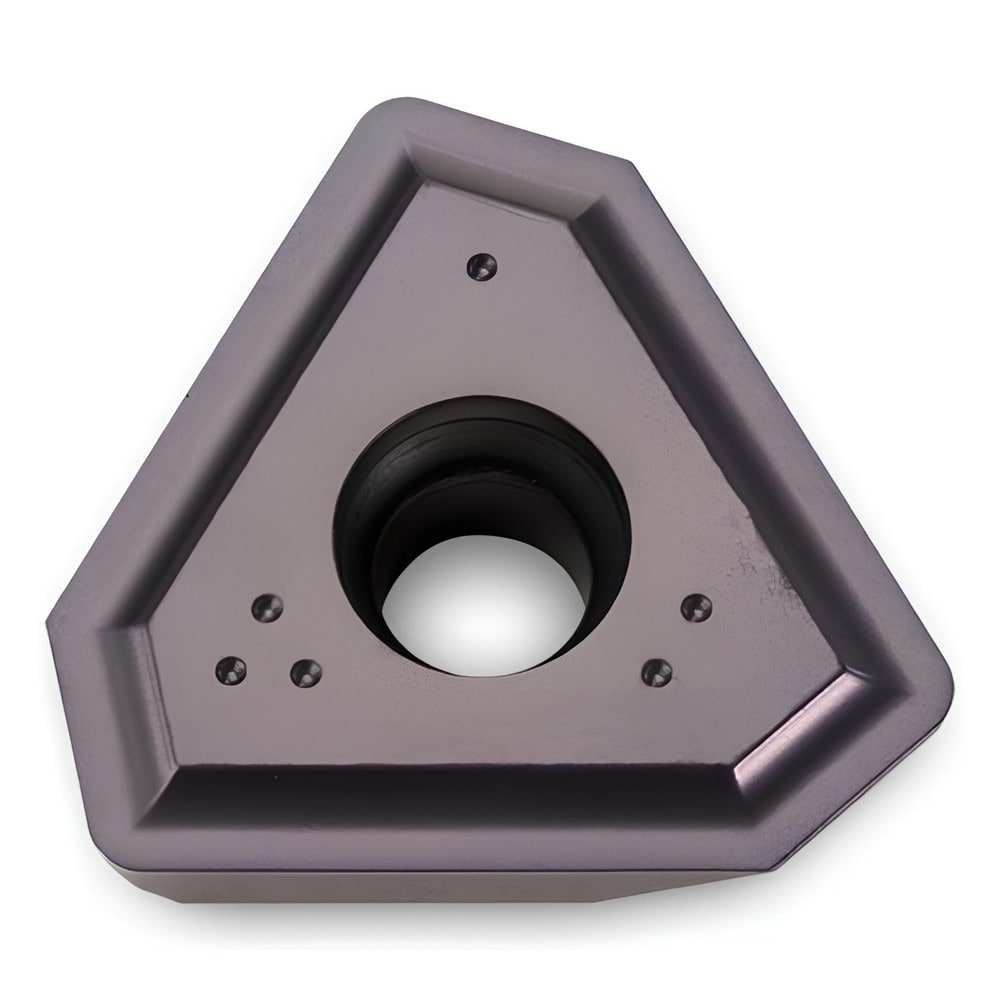

Brand: Ingersoll Cutting Tools / Part #: 4805501
Item #: 95104683
Brand: Ingersoll Cutting Tools
Model #: 4805501
Product Specifications
| Insert Style | TPMX |
| Insert Size Code | 170408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6542 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 13/32 |
| Inscribed Circle (Decimal Inch) | 0.4060 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | G |
| Series | TPMX |
| Coating Process | MTCVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Manufacturers Catalog Number | TPMX170408L-G IN6542 |
| Drill Style | TBTA |
| Insert Size | 17 |
| Coating Classification | CVD |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Coating/Finish | Al2O3 |
