Brand: Ingersoll Cutting Tools / Part #: 5809656
Item #: 54248554
Brand: Ingersoll Cutting Tools
Model #: 5809656

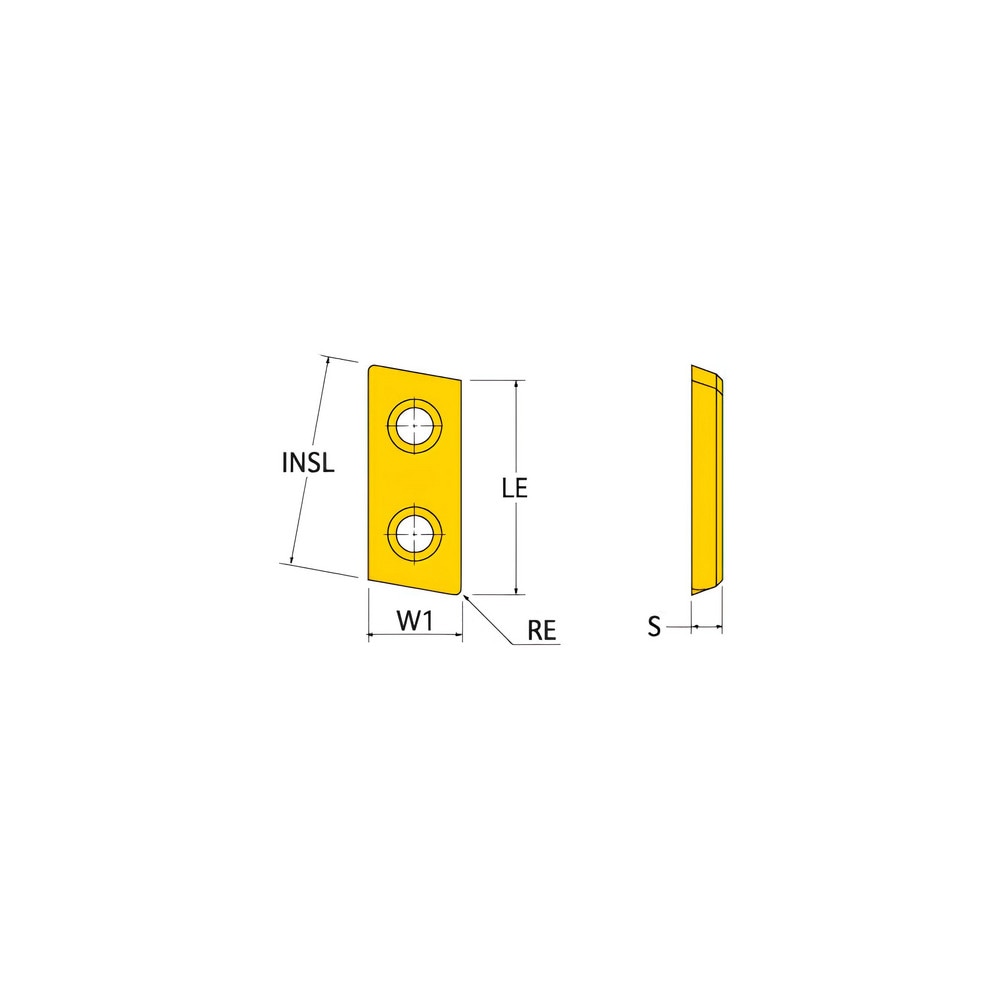

Product Specifications
| Insert Style | BEHB |
| Insert Size Code | 82 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2540 |
| Length (Inch) | 1 |
| Inscribed Circle (Inch) | 7/16 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Series | BEHB |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.9300 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | BEHB82R08 K |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | BEHB82R08 K IN2540 |
| Cutter Series Compatibility | 15J1H; 15.1H |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 23.6200 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.4380 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1450 |
| Multi-Use Tool | Yes |
