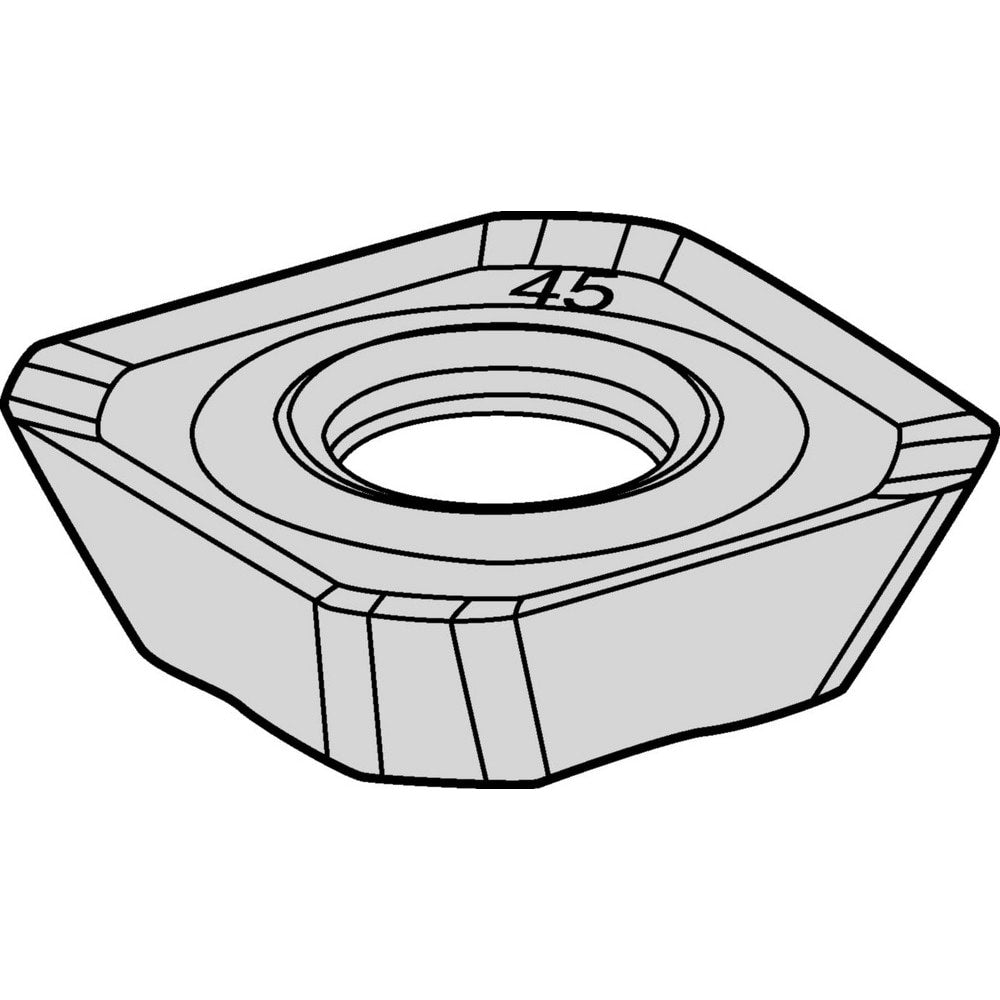

Brand: Widia / Part #: 4072174
Item #: 94531266
Brand: Widia
Model #: 4072174
Product Specifications
| Insert Style | SEPT |
| Insert Size Code | 13T3 |
| Insert Size | 13 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6525 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.5280 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Insert Hand | Neutral |
| Relief Angle | 20.000 |
| Series | SEPT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1610 |
| Maximum Depth of Cut (Decimal Inch) | 0.5280 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | SEPT13T3AGENMM |
| Iso Code | SEPT13T3AGENMM |
| Manufacturers Catalog Number | SEPT13T3AGENMM |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5280 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1562 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5280 |
