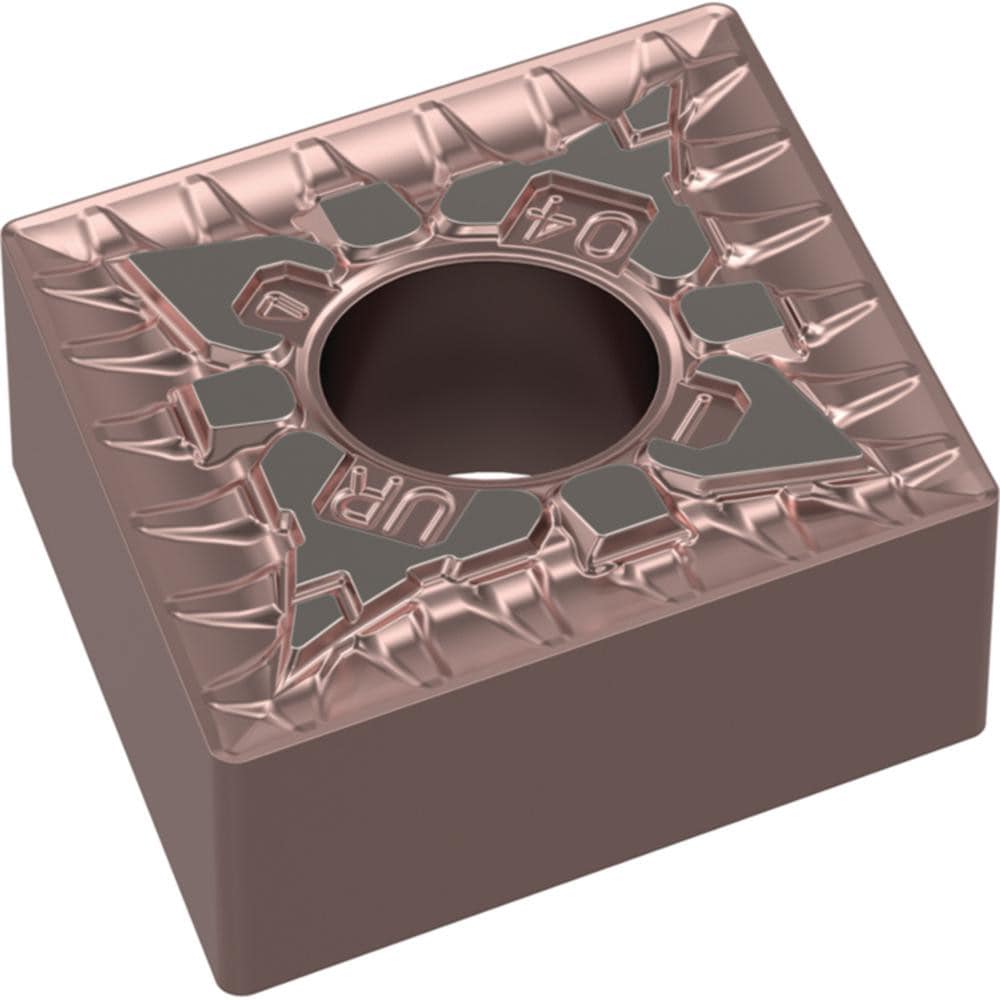

Brand: Widia / Part #: 6795798
Item #: 93319655
Brand: Widia
Model #: 6795798
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WU10PT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.2539 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 80.00 |
| Relief Angle | 0.000 |
| Series | CNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5077 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | CNMG432UR |
| Iso Code | CNMG120408UR |
| Manufacturers Catalog Number | CNMG432UR |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | UR |
| Style | CNMG |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
