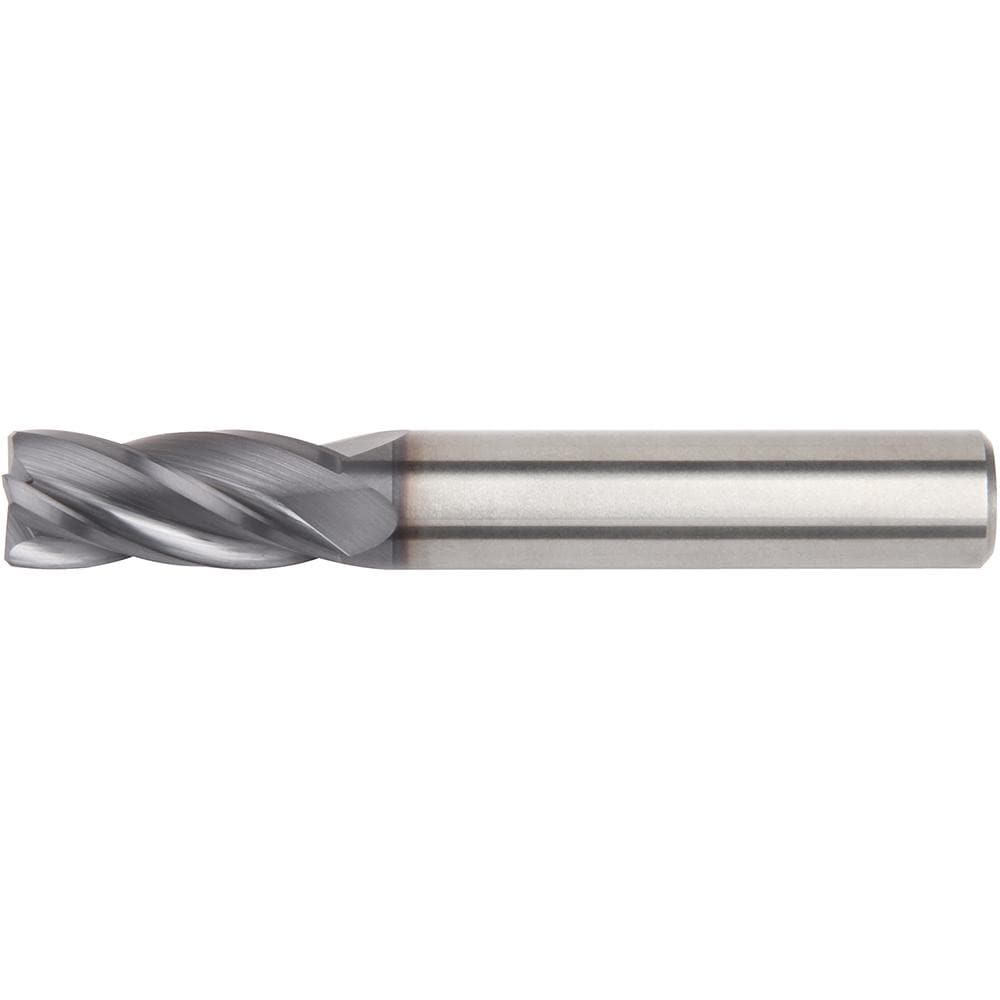

Brand: Widia / Part #: 5826017
Item #: 34034272
Brand: Widia
Model #: 5826017
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0591 |
| Mill Diameter (mm) | 1.50 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 4.0000 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN |
| Shank Diameter (mm) | 3.0000 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 38.0000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.1575 |
| Material Grade | TiAlN |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Overall Length (Decimal Inch) | 1.4961 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Regular |
| Reach Length (Decimal Inch) | 0.2470 |
| Reach Length (mm) | 6.28 |
| Through Coolant | No |
| Series | 4004 |
