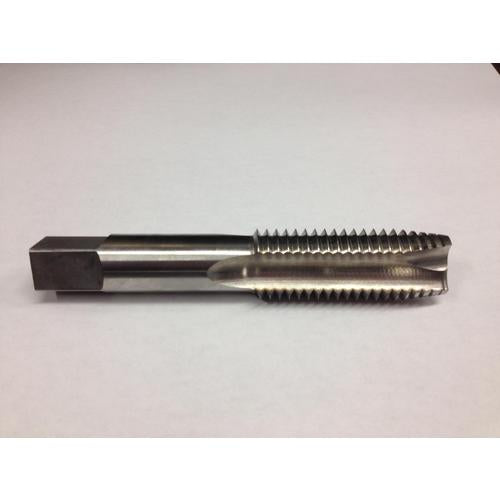

7/16-20 3FL H-3 STI SPPT PLUG TAPS 131
Item #: EP4057532
Brand: Reiff & Nestor
Model #: 57532
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | Plug |
| Thread Diameter Size (TDZ) | 7/16″ |
| Coating | Bright |
| Thread Tolerance Class (TCTR) | H3 |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | STI |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Flute Length | 1-21/32″ |
| Threads per Inch (TPI) | 20 |
| Flute Type | Straight Flute |
| Overall Length (OAL) | 3-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.322″ × 1/2″ |
| Cutting Edge Material | HSS |
| Series/List # | 131 |
| End Shape | Spiral Point |
| Thread Size | 7/16″ - 20 |
| Flute Count (NOF) | 3 |
