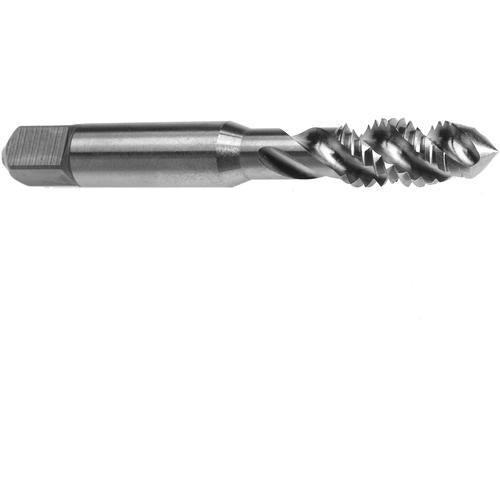

M3X0.5 2FL D-3 HD SPFL CNC DESIGN PLUG METRIC TAPS 406VM
Item #: EP4086402
Brand: Reiff & Nestor
Model #: 86402
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 0.5 mm |
| Tool Type | Tap |
| Overall Length (OAL) | 1-15/16″ |
| Chamfer | Bottom |
| Thread Cutting Part Length (THL) | 5/8″ |
| Coating | Bright |
| Usable Length (LU) | 5/8″ |
| Flute Length | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.11″ × 3/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
