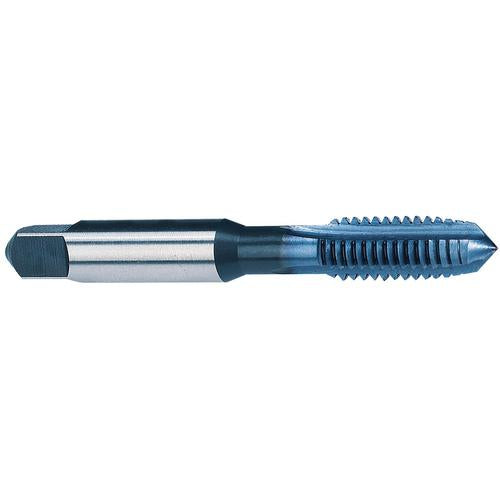

5/16-18 3FL H-5 BLUE DIAMOND TREAT CNC DESIGN PLUG TAPS 403V (84492) 17
Item #: EP4099306
Brand: Reiff & Nestor
Model #: 99306
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 18 |
| Chamfer | Plug |
| Thread Standard | NC |
| Coating | Blue Diamond |
| Overall Length (OAL) | 2-23/32″ |
| Drive Size (DRVS) | 0.238″ |
| Thread Cutting Part Length (THL) | 11/16″ |
| Flute Type | Straight Flute |
| Usable Length (LU) | 1-1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 11/16″ + 9/16″ NECK × 0.238″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 12 |
| Cutting Edge Material | HSS |
| Thread Size | 5/16″ - 18 |
| Thread Tolerance Class (TCTR) | H5 |
