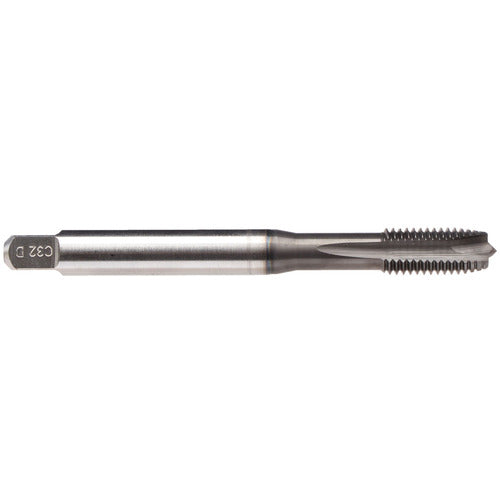

STI-M8-TAP-REK B-VA-GLT-1
Item #: ER450203000973
Brand: EMUGE-FRANKEN
Model #: B020C300.0973
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coolant Supply Property (CSP) | External |
| Style | Plug |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | M8 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | 6H mod |
| Thread Pitch (TP) | 1.25 mm |
| Thread Standard | Metric |
| Usable Length (LU) | 39 mm |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Applicable Material | Steel | Stainless Steel |
| Standard | DIN |
| Chamfer | 4P-5P |
| Series/List # | 020C300 |
| Coating | GLT-1 |
| Thread Size | M8 × 0.5 |
