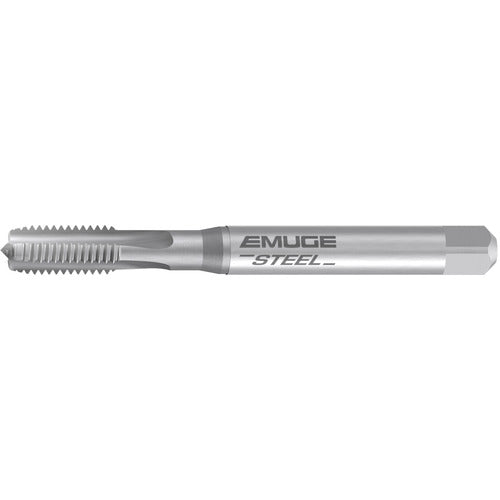

M 10X1-ISO2/6H-LH REK.1A
Item #: ER4511818
Brand: EMUGE-FRANKEN
Model #: B0101051.0276
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Standard | DIN |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Rekord A-Steel |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm |
| Coating | Bright |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSSE |
| Series/List # | 0101051 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M10 × 1 |
