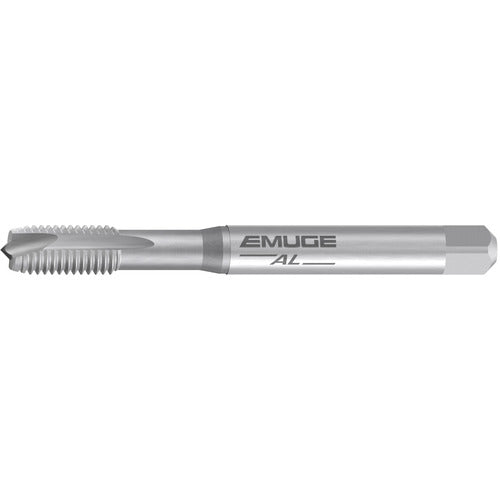

M 3-ISO2/6H REK.1B-AL
Item #: ER4511985
Brand: EMUGE-FRANKEN
Model #: B0204500.0030
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSS-E |
| Thread Size | M3 × 0.5 |
| Standard | DIN |
| Thread Diameter Size (TDZ) | M3 |
| Tool Type | Rekord B-AL |
| Thread Pitch (TP) | 0.5 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | 6H |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm |
| Overall Length (OAL) | 56 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Series/List # | 204500 |
