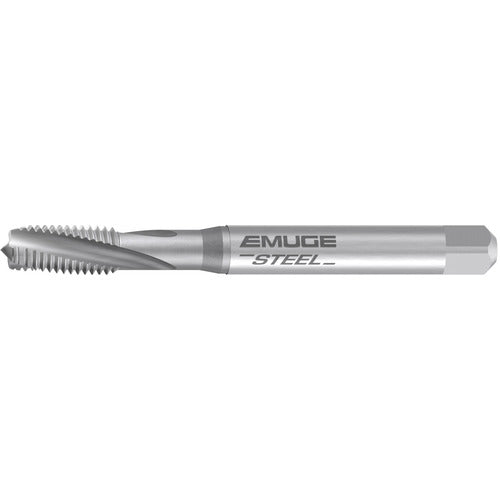

M 5-ISO2/6H REK.1D
Item #: ER4512056
Brand: EMUGE-FRANKEN
Model #: B0451000.0050
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN | ANSI |
| Thread Size | M5 × 0.8 |
| Tool Type | Rekord D |
| Thread Diameter Size (TDZ) | M5 |
| Applicable Material | Steel | Cast Iron |
| Thread Pitch (TP) | 0.8 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Tolerance Class (TCTR) | 6H |
| Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 70 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Series/List # | 451000 |
| Cutting Edge Material | HSS-E |
