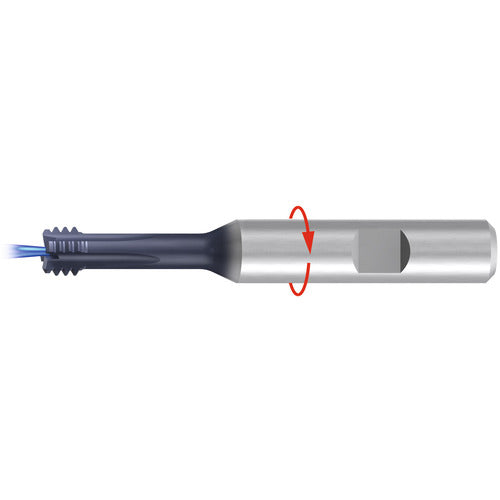

M 14-M16X2 ZBGF-H THRILLER
Item #: ER4517300
Brand: EMUGE-FRANKEN
Model #: GF733208.0114
| Product Specifications | |
|---|---|
| Thread Size | M14-M16 |
| Coating | AlTiN |
| Thread Pitch (TP) | 2 mm |
| Applicable Material | Hard Materials |
| Thread Diameter Size (TDZ) | M14 - M16 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 11.1 mm |
| Series/List # | A503344 |
| Overall Length (OAL) | 98 mm |
| Length Group | 2xD |
| Flute Count (NOF) | 4 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 8 mm |
| Shank Type | HB |
| Cutting Direction (HAND) | Left Hand |
