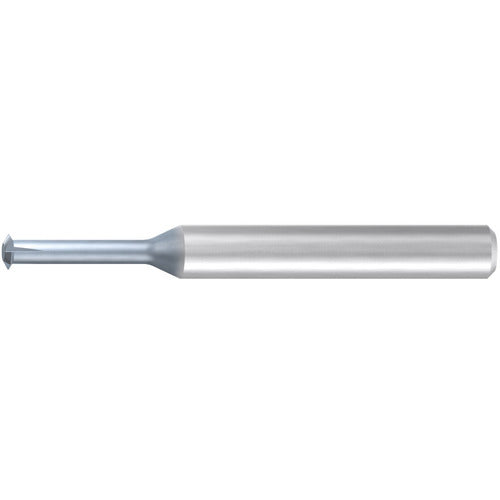

GF273706.0080 THREAD MILL
Item #: ER45GF273706080
Brand: EMUGE-FRANKEN
Model #: GF273706.0080
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Shank Type | HA |
| Thread Pitch (TP) | 1.25 mm |
| Coating | TiCN |
| Thread Standard | Metric |
| Applicable Material | Universal Materials |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 6.5 mm |
| Usable Length (LU) | 24.65 mm |
| Overall Length (OAL) | 65 mm |
| Length Group | 3xD |
| Flute Count (NOF) | 4 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Right Hand | Left Hand |
