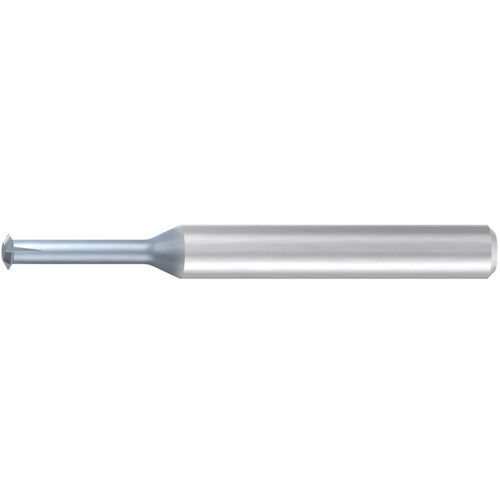

#10-32 NF - ZGFI -3xD Thread Mill
Item #: ER45GFS83706504
Brand: EMUGE-FRANKEN
Model #: GFS83706.5041
| Product Specifications | |
|---|---|
| Thread Size | #10 |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Threads per Inch (TPI) | 32 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | #10 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Flute Type | Straight |
| Cutting Diameter (DC) | 0.146″ |
| Series/List # | A504524 |
| Overall Length (OAL) | 1-7/8″ |
| Length Group | 3xD |
| Flute Count (NOF) | 4 |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Depth of Cut Maximum (APMX) | 0.57″ |
| Coating | TiCN |
| Cutting Direction (HAND) | Right Hand | Left Hand |
