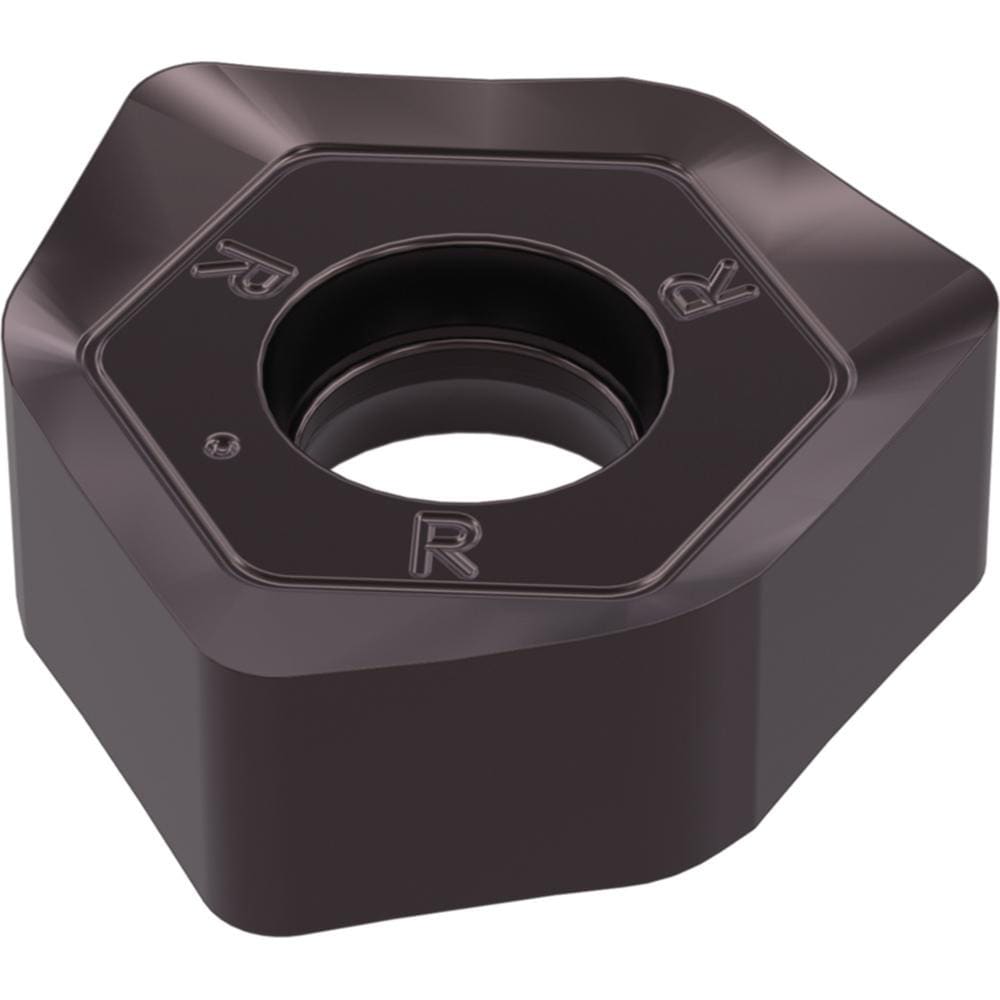

Brand: Widia / Part #: 3954427
Item #: 95155453
Brand: Widia
Model #: 3954427
Product Specifications
| Insert Style | XNGJ |
| Insert Size Code | 0704 |
| Insert Size | 07 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6540 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0510 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1200 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.0000 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (Decimal Inch) | 0.2670 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | XNGJ0704ANENLD3W |
| Iso Code | XNGJ0704ANENLD3W |
| Manufacturers Catalog Number | XNGJ0704ANENLD3W |
| Cutter Series Compatibility | M1200 HN0704 IN |
| Chip Breaker | LD |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.5448 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1758 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5448 |
