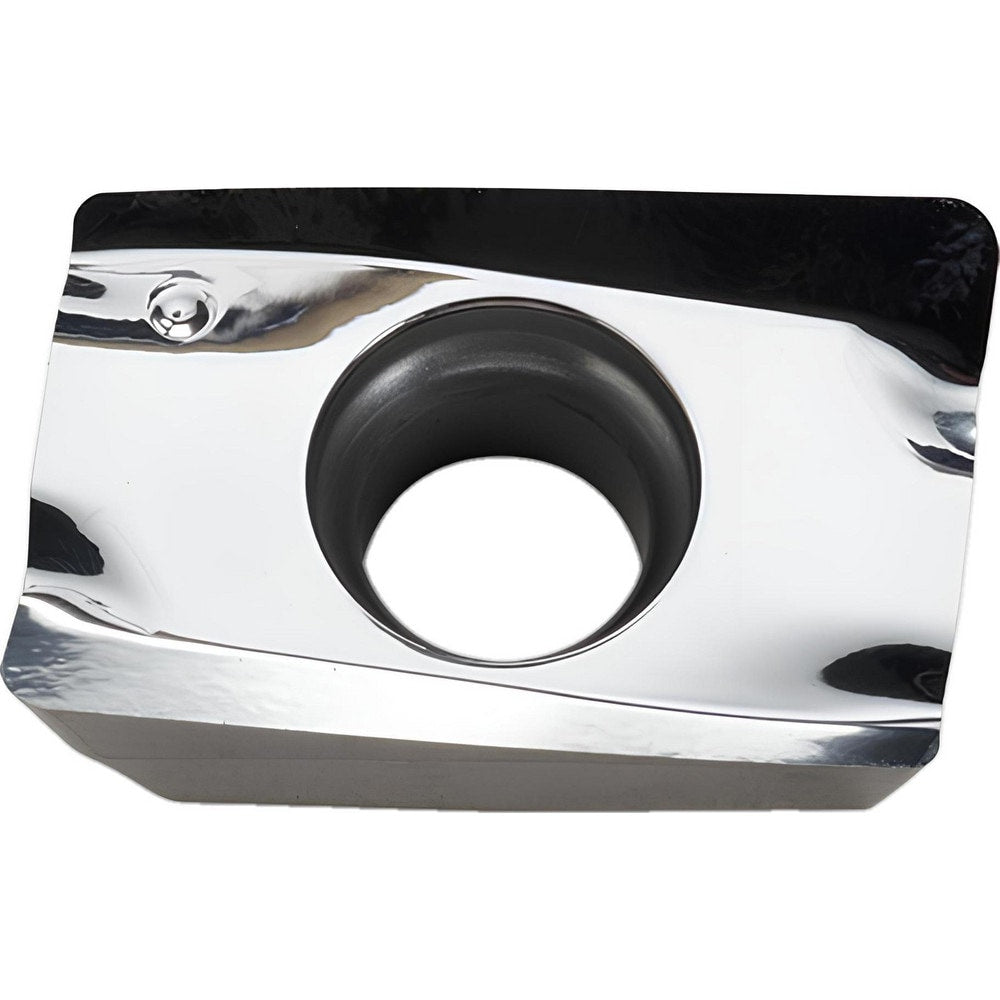

Brand: Ingersoll Cutting Tools / Part #: 5813601
Item #: 96118187
Brand: Ingersoll Cutting Tools
Model #: 5813601
Product Specifications
| Insert Style | AOCT |
| Insert Size Code | 120404 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Inscribed Circle (Decimal Inch) | 0.3250 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | AOCT |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.4900 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | AOCT120404FR-P S |
| Manufacturers Catalog Number | AOCT120404FR-P S IN10K |
| Cutter Series Compatibility | 12V1X; 22J3X; 2J1X; 12J1X |
| Chip Breaker | P |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 12.4500 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1900 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.5730 |
