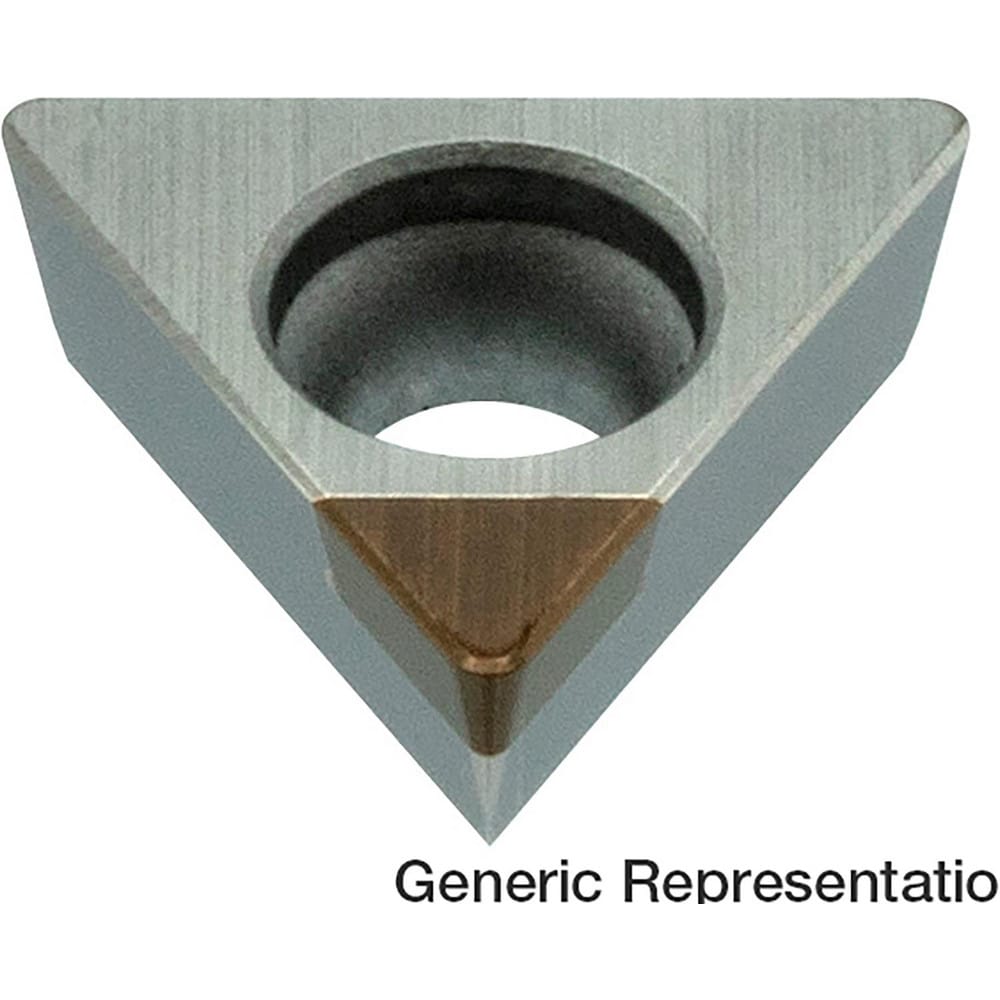

Brand: Sumitomo / Part #: 16JYDUV
Item #: 93084788
Brand: Sumitomo
Model #: 16JYDUV
Product Specifications
| Insert Style | TPGD |
| Insert Shape Code | T |
| Insert Size Code | 631 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | BN7000 |
| Corner Radius (mm) | 0.40 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.4000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 4.76 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Clearance Code | P |
| Tolerance Code | G |
| Relief Angle | 11.000 |
| Series | BN7000 |
| Manufacturers Catalog Number | NUTPGD631LF-BN7000 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 8.20 |
