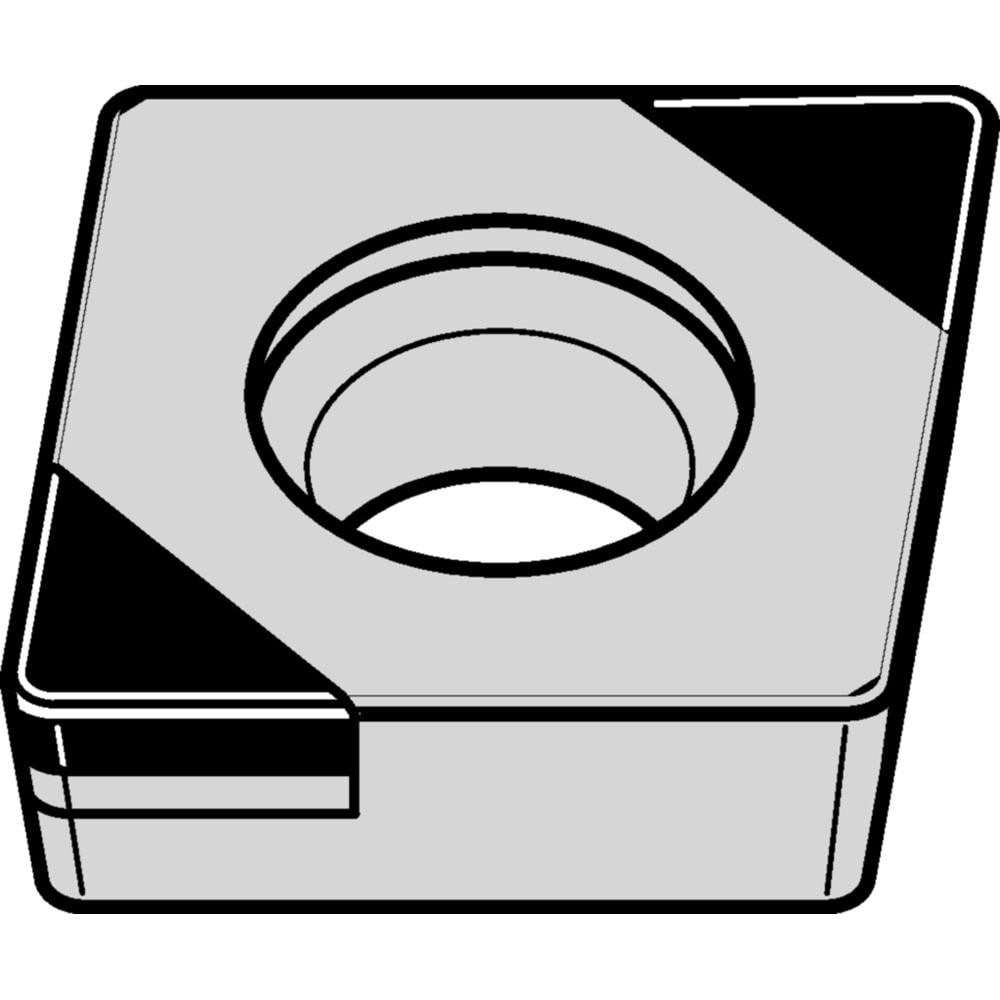

Brand: Widia / Part #: 3883921
Item #: 95882551
Brand: Widia
Model #: 3883921
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 3252 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | WBH10U |
| Corner Radius (Decimal Inch) | 0.0311 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1905 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1570 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 80.00 |
| Relief Angle | 7.000 |
| Series | CCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3810 |
| Number Of Cutting Edges | 2 |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Ansi Code | CCGW3252S0415MT |
| Iso Code | CCGW09T308S01015MT |
| Manufacturers Catalog Number | CCGW3252S0415MT |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | MT |
| Cutting Edge Style | Chamfered and Rounded |
| Style | CCGW |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
