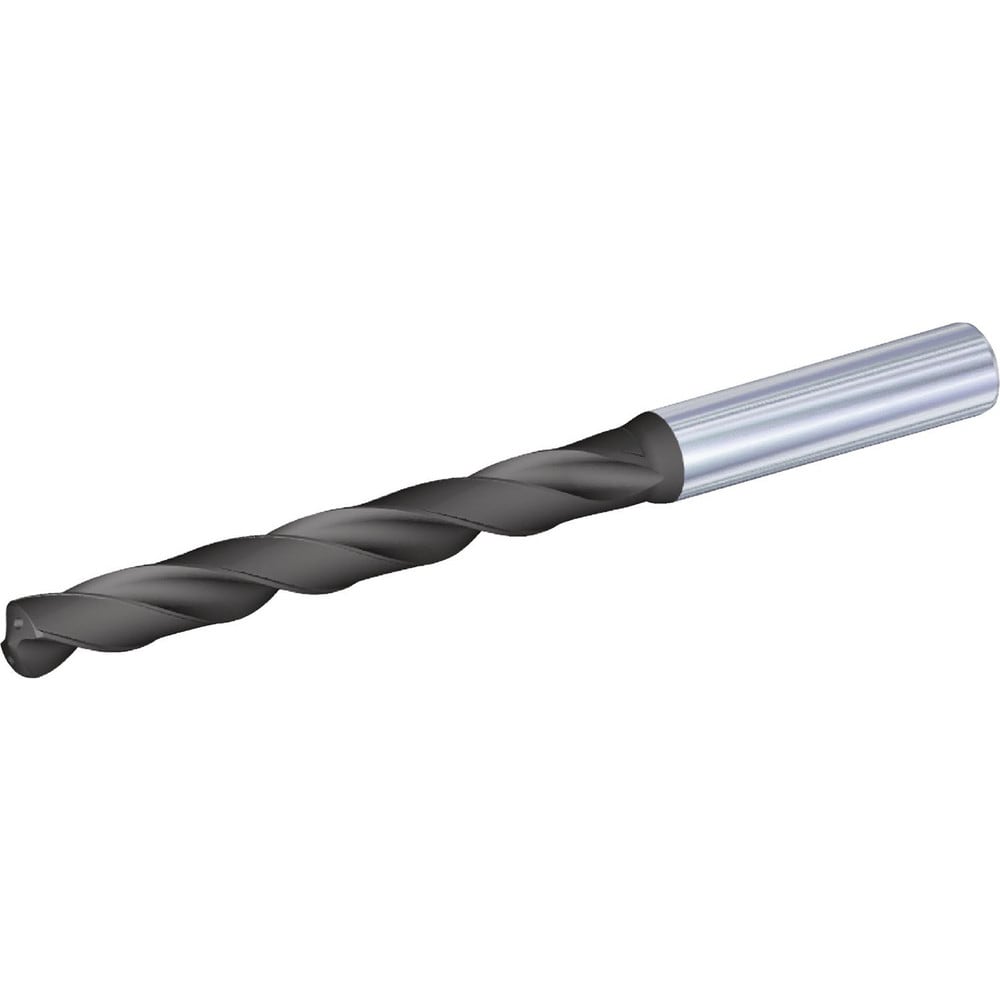

Brand: Widia / Part #: 4157080
Item #: 03226867
Brand: Widia
Model #: 4157080
Product Specifications
Drill Bit Size (Inch) | 11/32 |
Tool Material | Carbide |
Coating/Finish | AlCrN |
Drill Point Angle | 140 |
Shank Type | Cylindrical |
Coolant Through | Yes |
Flute Type | Spiral |
Series | TDS413A |
Point Type | Four Facet |
Cutting Direction | Right Hand |
Tool Application | Deep Hole Drilling |
Spiral Type | Regular |
Drill Bit Diameter Tolerance | 0.000200 to 0.000800 in |
Number Of Flutes | 2 |
Primary Workpiece Material | Cast Iron |
Primary Workpiece Material Code | K |
Drill Bit Grade | WK15PD |
Drill Bit Size (Decimal Inch) | 0.3438 |
Drill Point Length (Decimal Inch) | 0.0584 |
Overall Length (Decimal Inch) | 4.8031 |
Shank Diameter (Decimal Inch) | 0.3937 |
Shank Length (Decimal Inch) | 1.5748 |
Flute Length (Decimal Inch) | 3.1496 |
Flute By Diameter Ratio | 8xD |
Maximum Drilling Depth (Decimal Inch) | 2.6772 |
