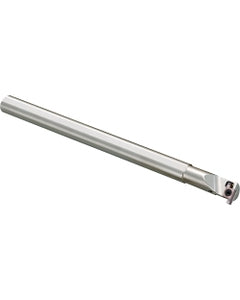

SIGEL 4032EEH, Internal Grooving Toolholder
Item #: KY96THC09461
Brand: Kyocera Precision Tools
Model #: THC09461
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Width Maximum (CWX) | 1 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 6.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 30.4 mm |
| Application | | Int. Grooving | |
| Minimum Bore Diameter (DMIN) | 40 mm |
| Body Material | Steel |
| Functional Width (WF) | 23 mm |
| Series/List # | SIGE |
| Functional Length (LF) | 250 mm |
| Measurement Type | Metric |
| Head Length (LH) | 45 mm |
| Shank Length (LS) | 205 mm |
| Overall Length (OAL) | 250 mm |
