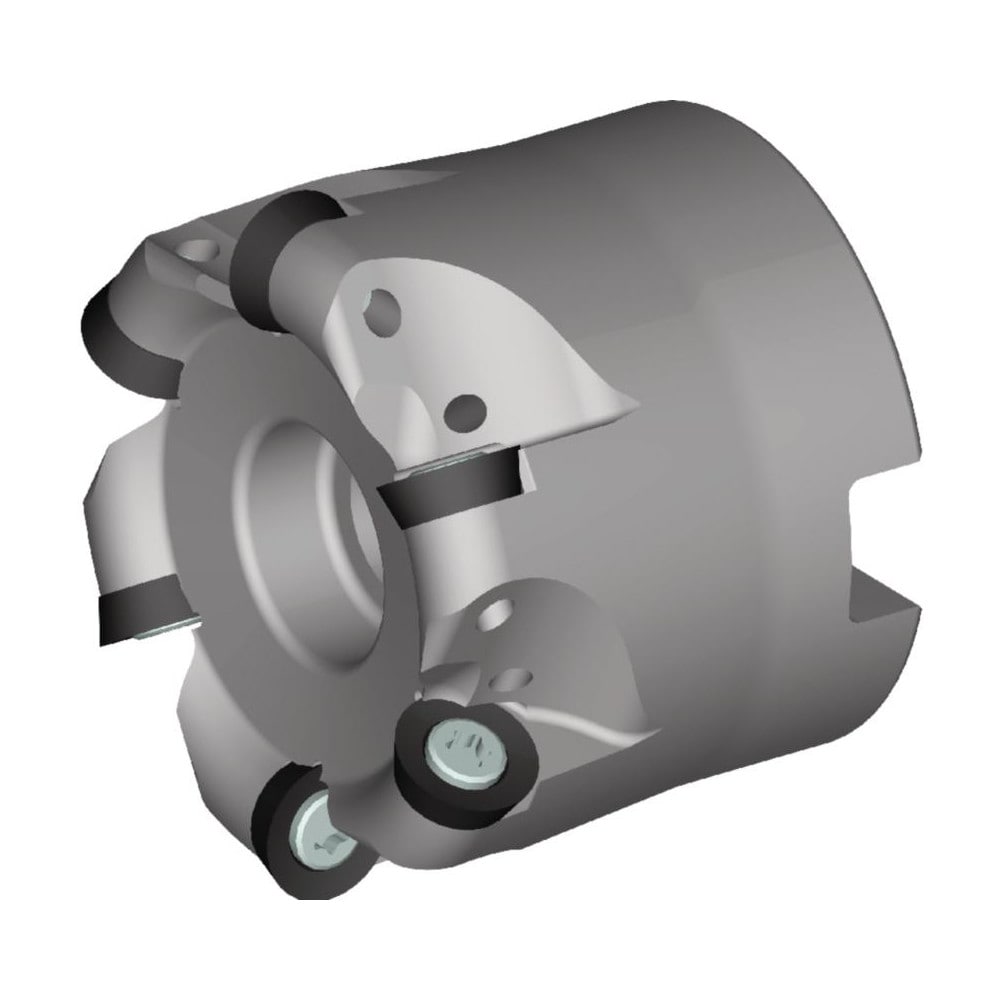

Brand: Widia / Part #: 3940723
Item #: 95309126
Brand: Widia
Model #: 3940723
Product Specifications
| Minimum Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (mm) | 42.00 |
| Maximum Cutting Diameter (mm) | 42.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | 1003 |
| Maximum Ramping Angle | 5.8 |
| Cutter Style | M170 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M170 |
| Hub Diameter (mm) | 37.000 |
| Keyway Width (mm) | 8.45 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Maximum RPM | 9500.000 |
| Tool Application | Facing; Profiling; Helical Interpolation; Pocketing; Shouldering; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (mm) | 10.00 |
| Complete Insert Compatibility | RD.X1003.. |
| ISO Number | M170D042Z05RD10 |
| Number Of Cutter Inserts | 5 |
| Overall Diameter (Mm - 4 Decimals) | 42.0000 |
| Coolant Through | Yes |
