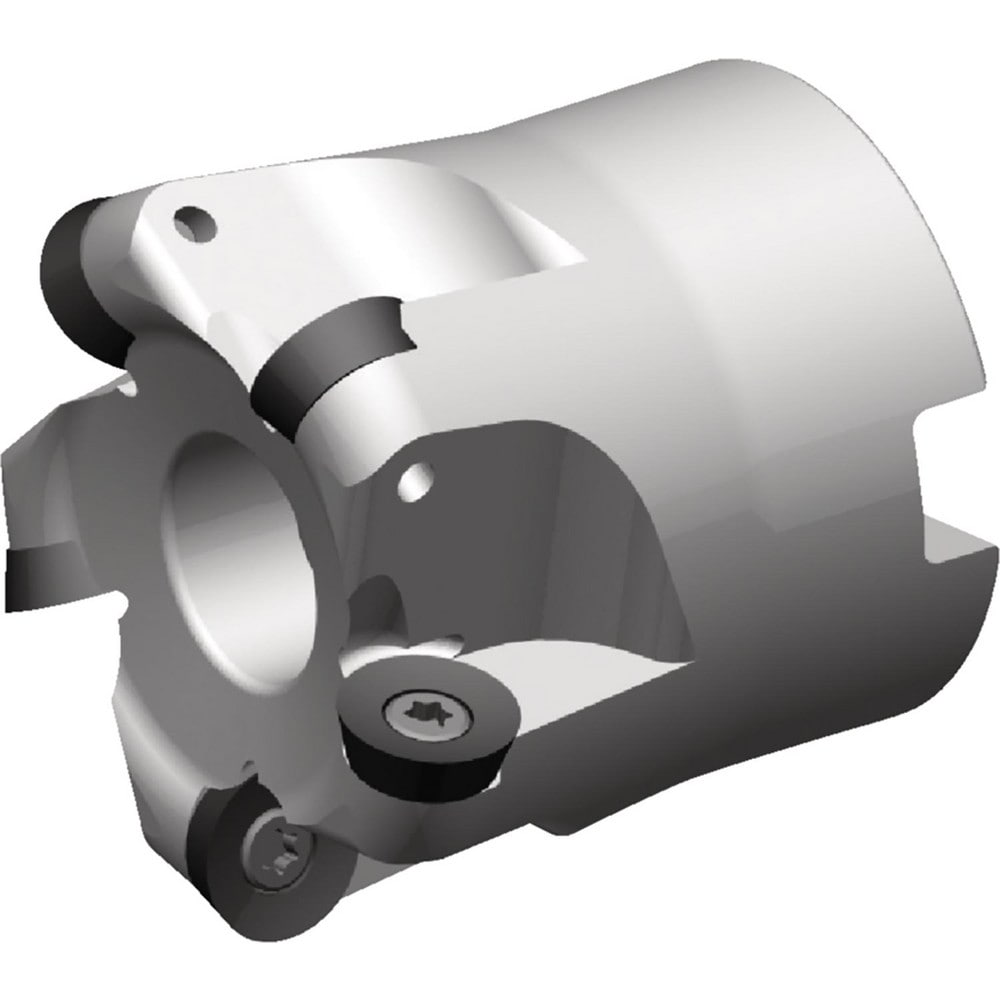

Brand: Widia / Part #: 3930972
Item #: 97195895
Brand: Widia
Model #: 3930972
Product Specifications
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | RD.X12T3.. |
| Maximum Ramping Angle | 4.50 degree |
| Cutter Style | M170 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M170 |
| Hub Diameter (Decimal Inch) | 1.7323 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Maximum RPM | 7600 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Ramping; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
